Taper type annular BOP

Description

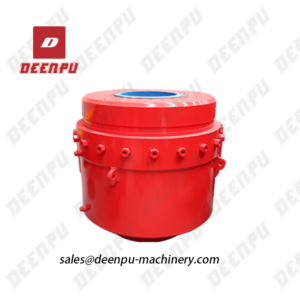

Taper type annular BOP



Feature
●  The lip seal, has a self-sealed capability, it is more reliable.
●  A bore in piston with stroke test, can measure rubber`s life.
●  The claw plate connection, reliable connection, the shell stress even and convenient installation.
●  Upper pistons for cone, the product outside diameter is small.
● Friction surface with abrasion proof plate, protect the header, easy to replace.



Taper Type annular BOP

Working

pressure

MPa(psi)

Main bore
mm(in)
179.4-7  1/16 228.6-9 279.4-11 346.1-13 5/8 425-16 3/4 476-18 3/4 527-20 3/4 539.8-21 1/4 749.3-29 1/2 762-30
3.5(500)
7(1000)
14(2000)
21(3000)
35(5000)
70(10000)

Note:▲Stands for typer Type

Taper Type annular BOP and packing element specification

Model Main bore
mm(in)
Working pressure
MPa(psi)
Operating Pressure MPa Connection type Dimensionmm mm weight kg Recommended bop code
Top Bottom Outside diameter Height
FHZ35-21 346(13 5/8) 21(3000) 8.4~10.5 studded fanged 1296 1203 4693 H13.00
FHZ35-35 35(5000) 1340 1350 5713 H28B.00
FHZ43-21 425(16 3/4) 21(3000) 1386 1368 6180 H16.00
FHZ53-21 527(20 3/4) 21(3000) 1452 1463 7873 H15.00
FHZ54-14 540(21 1/4) 14(2000) 1516 1337 6780 H33.00
FHZ54-35 35(5000) 2065 2055 21475 H27B.00
