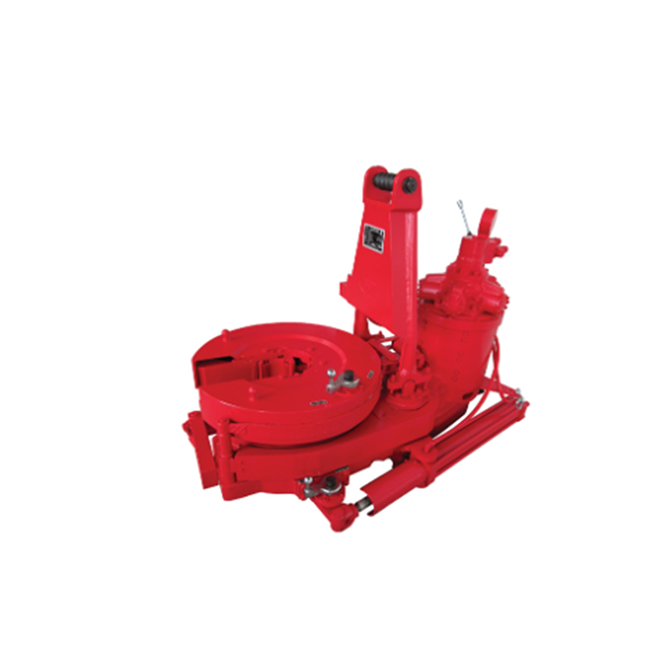

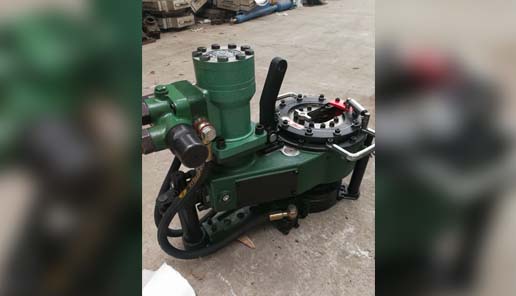

Casing Power Tong Hydraulic Power Tong Tq Series with Jaws for Workover
This series power tong is used for quick make-up/break-out sucker rod in well service operations. The tong is equipped with hydraulic backup tong and use planetary claws to clamp, which is an up to date parent product. It’s an ideal choice in well service operation.
The tongs have the following features:
1.Without changing any part within the application range
2.Adopt the braking belt, reliable braking
3.Adopt the patent valve which can solely control the make-up torque and have over pressure protective function.
4.Choose and buy lengthening guide pole assembly, the backup tong can clamp the tubing body.
5.Torque Control System may be equipped according to customer’s request.
Specification
| Model | XQ28/1.8 | XQ28/2.6 |
| The range of master tong | Sucker rod GYG 16 19 22 25 28,Φ48~60 oil tube 5/8″~11/8″ | Sucker rod GYG 16 19 22 25 28
5/8″~11/8″ |
| the range of Back tong | Sucker rod GYG 16 19 22 25 28,Φ48~60 oil tube
5/8″~11/8″ |
Sucker rod GYG 16 19 22 25 28
5/8″~11/8″ |
| High gear rated torque | 700 N.m 516 ft-lbs |
1000 N.m 737.5 ft-lbs |
| Low gear rated torque | 1800 N.m 1327.6 ft-lbs |
2600 N.m 1918 ft-lbs |
| High gear rated speed | 104 r/min | 98 r/min |
| Low gear rated speed | 40 r/min | 32 r/min |
| Rated the system pressure | 10 MPa 1450 psi |
10 MPa 1450 psi |
| Maximum supply oil | 65 L/min 17 gpm |
80 L/min 21 gpm |
| Overal dimension
L×W×H(mm) |
543×334×404 21.4″×13.1″×15.9″ |
670×383×490 26.4″×15.1″×19.3″ |
| Removed quality(including back clamp) | 105 kg 231 lbs |
100kg
220lbs |
Our company has been in the oil & gas drilling equipment industry for over more years, We are here to serve all your drilling equipment needs.
