Zq203-100 Drill Pipe Tong

Description

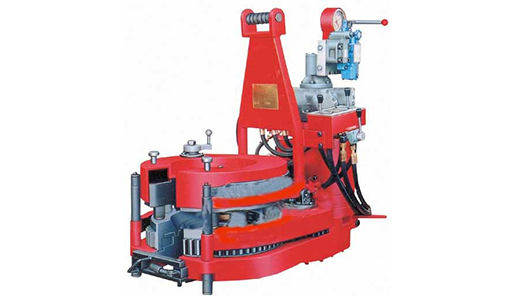

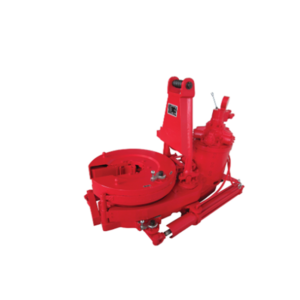

Zq203-100 Drill Pipe Tong



This drill pipe tong is applicable in the petroleum and mine drilling, it is safety and labor saving, and improving the working efficiency.
 The tongs have the following features:
1.Using pneumatic power to shift and drive backup tong
2.It is a integral mechanism made by spin tong and torque tong
3.Changing gear allowed during operation
4.New or old drilling pipe joint could be clamped reliably
5.Both directions could run the maximum torque and rotation speed
Model
ZQ127/25Y
ZQ162-50
ZQ203-100
ZQ203-100-II
ZQ203-125
Pipe Size Range of Master Tong
Φ73-140
27/8″ – 51/2″
Φ85-162
23/8″ – 5″
Φ101-203
31/2″ – 8″
Φ114-203
27/8″ – 8″
Φ101-203
31/2″ – 8″
High Gear Rated Torque
3500N.m
2581ft-lbs
9500N.m
7007ft-lbs
9500N.m
7007ft-lbs
9500N.m
7007ft-lbs
10000N.m
7370ft-lbs
Low Gear Rated Torque
25000N.m
18349ft-lbs
50000N.m
36880ft-lbs
100000N.m
73756ft-lbs
100000N.m
73750ft-lbs
145000N.m
106940ft-lbs
High Gear Rated Speed
≤65r/min
60r/min
40r/min
40r/min
33r/min
Low Gear Rated Speed
≤10r/min
4.1r/min
2.7r/min
2.7r/min
2.2r/min
Rated Operation Pressure
16 MPa
2320 psi
14 MPa
2030 psi
16 MPa
2320 psi
16.6 MPa
2400 psi
18 MPa
2610psi
Max. Flow
120 L/min
32 gpm
120 L/min
31.7 gpm
114 L/min
30 gpm
114 L/min
30 gpm
120 L/min
32gpm
Pneumatic Operation Pressure
0.5~0.9MPa
72.5~130.5psi
0.5~0.9MPa
72.5~130.5psi
0.5~0.9MPa
72.5~130.5psi
0.6~1.0MPa
72.5~130.5psi
Dimension :L x W x H
1250x 780 x 1000
1570 x 800 x 1190
1700 x 1000 x 1400
1760 x 1000 x 1630
1750 x 1060x 1680
Weight(including Backup Tong)
650kg
1433lbs
1500kg
3310lbs
2400kg
5291lbs
2500kg
5510lbs
2500kg
5512lbs
