Description

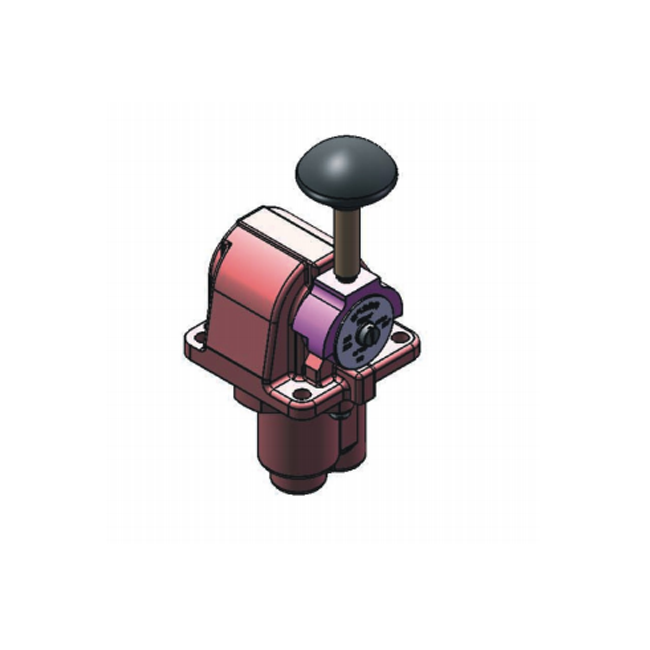

1″Main Air Control Valve（1/4”KQKF-00-00）

1 / 4 ”空气主控阀1″Main Air Control Valve（1/4”KQKF-00-00）

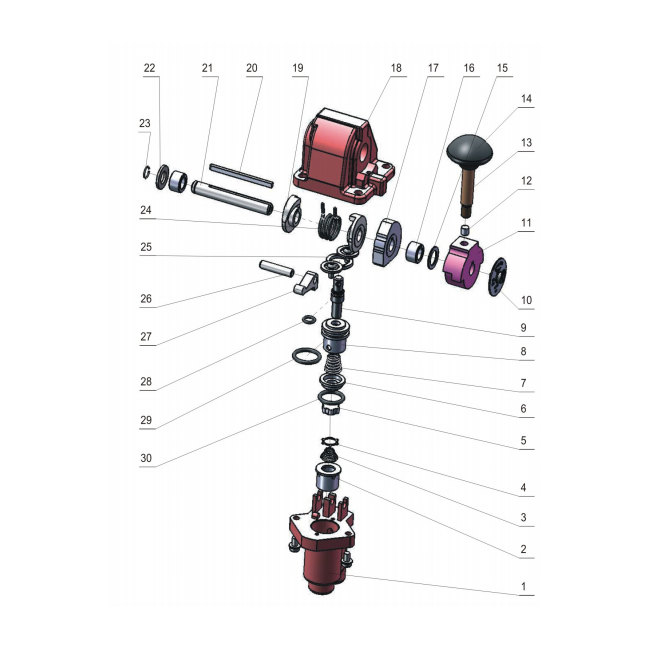

In repair kit维修包	(Item)序号	图号(Part No.)	名称(Description)	数量Qty
	1	1/4″KQKF-00-01	阀体 Valve Body	1
	2	1/4″KQKF-00-04	导套Guide Bush	1
	3	1/4″KQKF-00-02	圆锥弹簧Conical Spring	1
	4	1/4″KQKF-00-03	支承垫Supporting Gasket	1
	5	1/4″KQKF-00-05	阀芯 Valve Core	1
	6	1/4″KQKF-00-06	阀座 Valve seat	1
	7	1/4″KQKF-00-07	圆锥弹簧Conical Spring	1
	8	1/4″KQKF-00-08	进排气套Air Inlet/Outlet Bush	1
	9	1/4″KQKF-00-10	顶杆 Tappet	1
	10	1/4″KQKF-00-23	标牌Name Plate	1
	11	1/4″KQKF-00-22	手柄套Handle Sleeve	1
	12	1/4″KQKF-00-21	锁紧胶垫 Lock Rubber Pad	1
	13	1/4″KQKF-00-25	螺栓Handle	1
	14	1/4″KQKF-00-20	手柄 Handle	1
	15	1/4″KQKF-00-19	垫片 Gasket	1
	16	1/4″KQKF-00-18	铜套 Copper Sleeve	2
	17	1/4″KQKF-00-17	凸轮 Cam	1
	18	1/4″KQKF-00-13	支承壳体Housing	1
	19	1/4″KQKF-00-15	扭转弹簧支架 Torsion Spring Support	2
	20	1/4″KQKF-00-24	键 Key	1
	21	1/4″KQKF-00-14	轴 Spindle	1
	22	GB 95-2000 10	垫圈 Washer	1
	23	GB895-76 10	钢丝挡圈 Retainer Ring	1
	24	1/4″KQKF-00-16	扭转弹簧 Torsion Spring	1
	25	1/4″KQKF-00-09	压环Pressing Ring	1
	26	1/4″KQKF-00-12	圆柱销Pin	1
	27	1/4″KQKF-00-11	压板Pressing Bloke	1
▲	28	GB1235-76 11X1.9	O形密封圈O-Ring	1
▲	29	GB1235-76 22X2.4	O形密封圈O-Ring	1
▲	30	GB1235-76 22X2.4	O形密封圈O-Ring	1
