Description

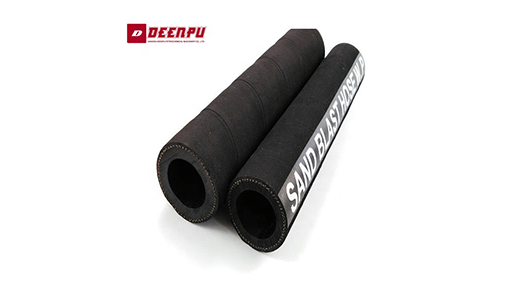

Hydraulic flexible concrete pump rubber hose and sandblasting hose

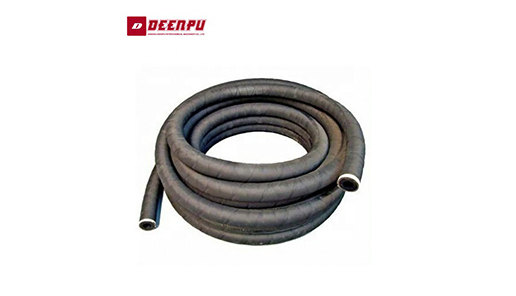

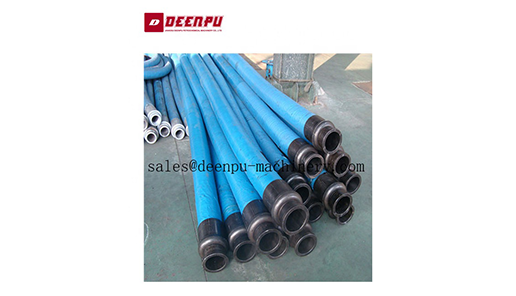

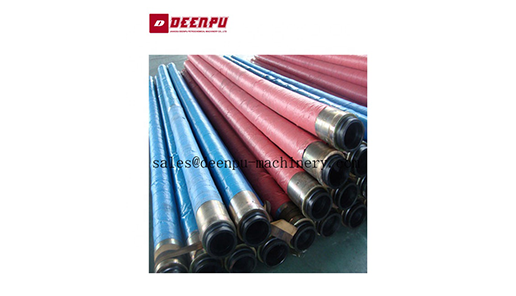

Concrete pump hose
Features: Specially developed premium hose for conveying concrete using concrete pumps.
Suitable for conveying highly abrasivemedia such as concrete, cement and plaster.
Long service life due to abrasion resistant tube. Flexible and easy to handle, with
good kink resistance due to a special hose design. Suitable for reverse pumping, for easy cleaning.
good kink resistance due to a special hose design. Suitable for reverse pumping, for easy cleaning.
Temperature range: -35°C / +80°C
Safety factor 2:1
Tube: NR/SBR/BR, black, smooth, antistatic, abrasion resistant
Reinforcement: Steel cord wrapped
Cover: SBR, black, antistatic, cloth impression
Product Paramenters
|
ID(mm)
|
OD(mm)
|
Working Pressure (bar)
|
Burst Pressure (bar)
|
Bend Radius (mm)
|
Weight (Kg/m)
|
|
51
|
68±1.5
|
85
|
200
|
200
|
2.8
|
|
64
|
85±1.5
|
85
|
200
|
250
|
4
|
|
76
|
102±1.5
|
85
|
200
|
270
|
6
|
|
89
|
116±1.5
|
85
|
200
|
290
|
7.5
|
|
102
|
130±1.75
|
85
|
200
|
300
|
9.2
|
|
115
|
143±2
|
85
|
200
|
320
|
10.5
|
|
127
|
158±2
|
85
|
200
|
360
|
11.7
|
|
152
|
186±2
|
85
|
200
|
570
|
17
|
Our company has been in the oil & gas drilling equipment industry for over more years, We are here to serve all your drilling equipment needs.
