Description

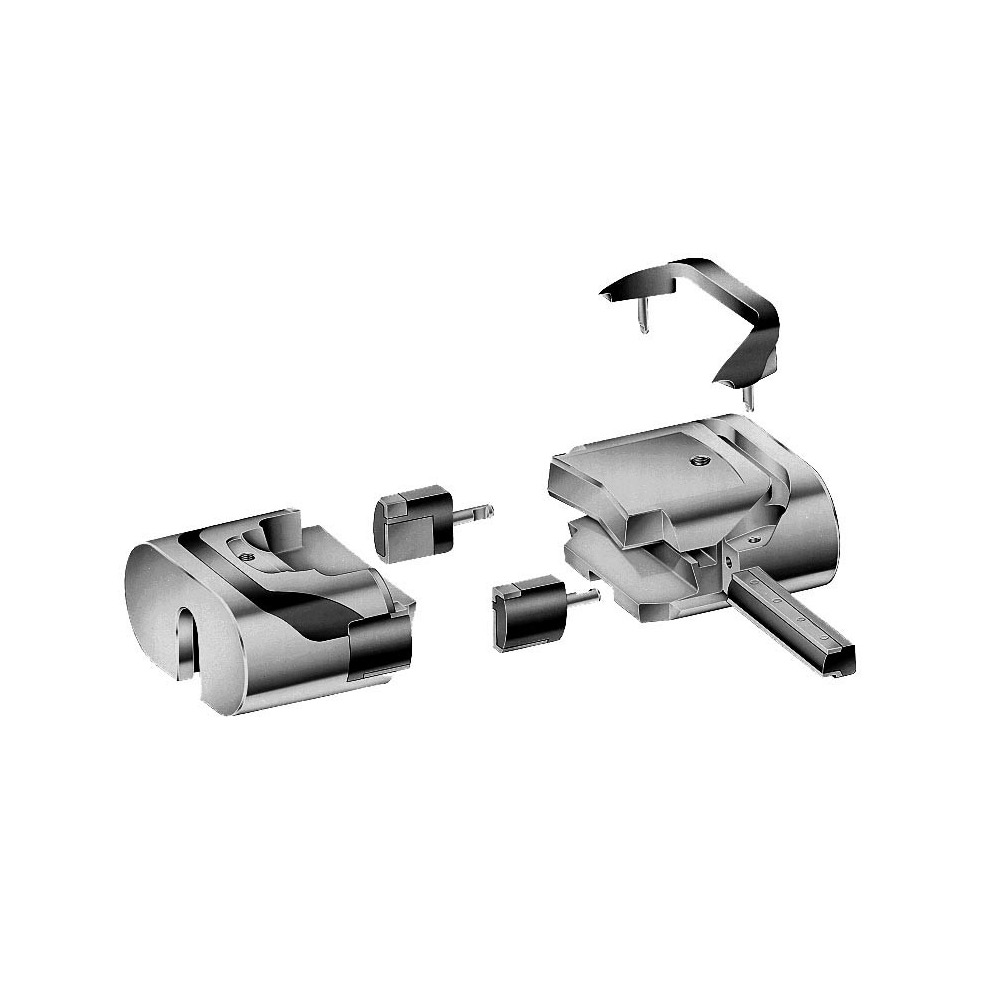

DEENPU supplies shearing blind rams fully interchangeable with Cameron U, UL and UM BOP shearing blind rams (SBR), including standard, H₂S, severe-service H₂S, and DS shear ram configurations. Shearing blind rams cut the pipe or tubing in the wellbore and then seal the well in a single operation — a critical well-control safety function.
All DEENPU shear ram assemblies, ram bodies, blade packers, side packers and top seals are dimensionally and functionally interchangeable with genuine Cameron parts. Part numbers are listed below for cross-reference.
Shear Ram Types Available
- SBR (Shearing Blind Ram) — standard shear-and-seal ram for drill pipe
- H₂S Shearing Blind Ram — sour-service rated with blade inserts and set screws
- Severe Service H₂S Shearing Blind Ram — enhanced for high H₂S concentration / high temperature
- DS Shearing Blind Ram — dual-string shearing capability
Standard Shearing Blind Ram (SBR) Part Numbers
| BOP Bore & Pressure | Upper Ram Subassy | Upper Body | Blade Packer | Lower Ram Subassy | Top Seal (×2) |
|---|---|---|---|---|---|
| 7-1/16″ 5/10/15K | 046792-01-00-03 | 046210-01-00-04 | — | 046792-02-00-03 | 644214-01-00-01 |
| 11″ 5/10K | 049392-01-00-02 | 049009-01-00-02 | 046910-04-00-01 | 049392-02-00-02 | 644217-01-00-01 |
| 11″ 15K | 2010458-01 | 2010459-01 | 046910-04-00-01 | 2010458-02 | 2010453-01 |
| 13-5/8″ 5/10K | 046748-01-00-01 | 046749-01-00-01 | 644435-01-00-01 | 046748-02-00-01 | 644223-01-00-01 |
| 13-5/8″ 15K | 614004-01-00-02 | 2010291-01 | 046910-01-00-02 | 614004-02-00-02 | 644226-01-00-01 |
| 16-3/4″ 5K | 046766-01-00-01 | 049006-01-00-01 | 046910-03-00-01 | 046766-02-00-01 | 644229-01-00-01 |
| 16-3/4″ 10K | 046773-01-00-01 | 046774-01-00-01 | 046910-03-00-01 | 046773-02-00-01 | 644229-01-00-01 |
| 18-3/4″ 10K | 2010211-01 | 2010213-01 | 2010192-01 | 2010210-01 | 2010193-01 |
| 21-1/4″ 5K | 049983-01-00-01 | 049981-01-00-01 | 046910-05-00-01 | 049983-02-00-01 | 645478-01-00-01 |
| 21-1/4″ 7.5/10K | 046788-01-00-01 | 049012-01-00-01 | 046910-05-00-01 | 046788-02-00-01 | 645478-01-00-01 |
H₂S Shearing Blind Ram Part Numbers
| BOP Bore & Pressure | Upper Ram Subassy | Ram Body | Blade Packer | Top Seal | Blade Insert |
|---|---|---|---|---|---|
| 11″ 5/10K | 645011-03-00-01 | 645009-01-00-01 | 046910-04-00-01 | 644217-01-00-01 | 645010-01-00-01 |
| 13-5/8″ 5/10K | 644781-01-00-01 | 644780-01-00-01 | 644435-01-00-01 | 644223-01-00-01 | 644581-01-00-01 |
| 13-5/8″ 15K | 2163019-01-01 | 2163017-01-01 | 644435-01-00-01 | 644226-01-00-01 | 2164281-01 |
| 18-3/4″ 10K | 2010186-01 | 2010187-01 | 2010192-01 | 2010193-01 | 2010182-01 |
| 21-1/4″ 10K | 2057307-01 | 2057302-01 | 046910-05-00-01 | 645478-01-00-01 | 2057304-01 |
DS (Dual String) Shearing Blind Ram — 11″ 5,000 & 10,000 psi
| Item | Upper Ram | Lower Ram |
|---|---|---|
| Ram Subassembly | 645078-01-00-04 | 645078-02-00-04 |
| Body | 645079-01-00-04 | 645079-02-00-04 |
| Side Packer (×2) | 645080-01/02-00-01 | 645080-01/02-00-01 |
| Blade Seal | 645031-02-00-01 | — |
| Top Seal (×2) | — | 644217-02-00-01 |
Interchangeable Spare Parts Available
DEENPU supplies interchangeable Cameron shear ram assemblies (upper and lower), ram bodies, blade packers, side packers, blade inserts, set screws, pins and top seals for all shear ram types and BOP sizes. Sour-service (NACE) configurations available.
Ordering Information
To order, please specify: shear ram type (SBR / H₂S / Severe H₂S / DS), BOP bore size and working pressure, and the specific items required (complete ram set, bodies, packers, blades, or seals). Provide the Cameron part number for cross-reference where available.
Contact DEENPU for Orders & Technical Support
Email: SALES@DEENPU-MACHINERY.COM
Phone / WhatsApp: +86 18051728055
ATTN: LINDA HU
Address: Yandu District, Yancheng City, Jiangsu Province, China
Web: www.deenpu-machinery.com
Our company has been in the oil & gas drilling equipment industry for over more years, We are here to serve all your drilling equipment needs.
