DEENPU Bladder Accumulator (HYDAC Interchangeable) | SB330/SB400/SB500/SB550/SB600 | 330-600 bar

Description

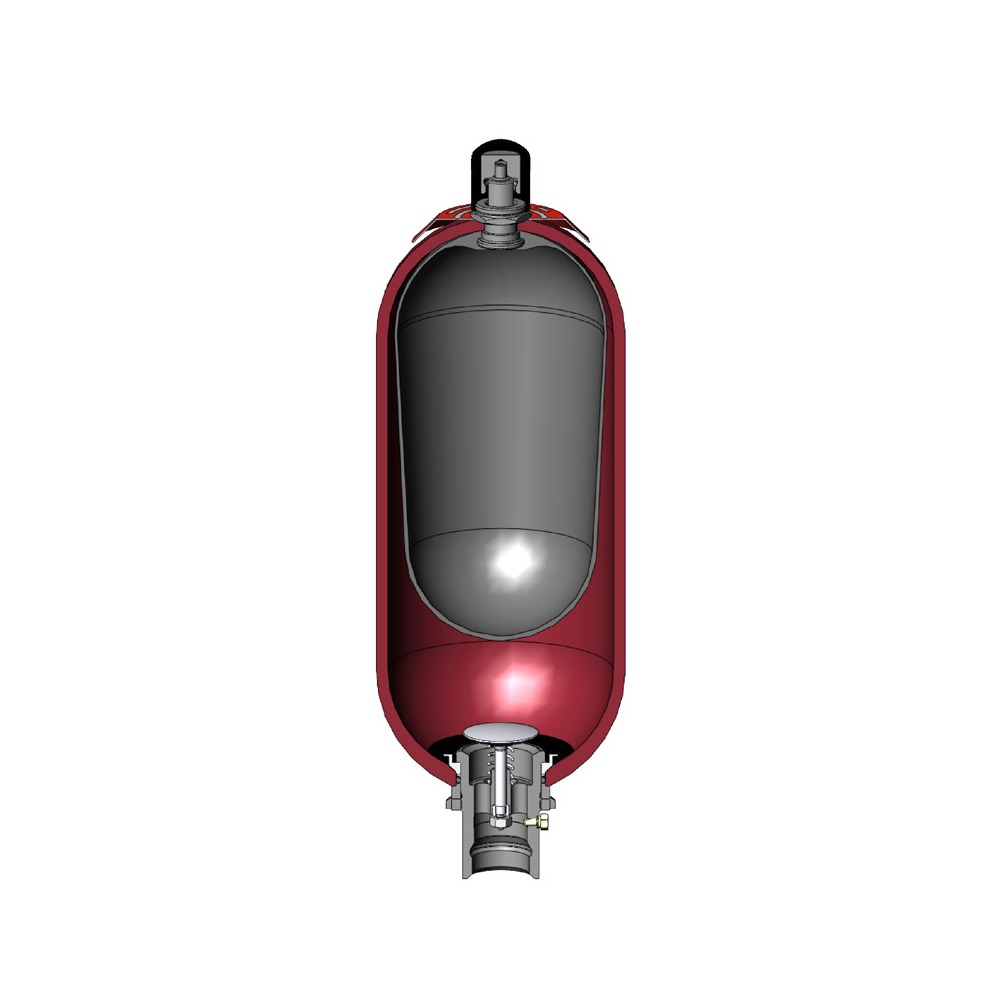

DEENPU supplies standard bladder accumulators and interchangeable spare parts fully compatible with HYDAC SB330, SB400, SB500, SB550, and SB600 series. Our bladder accumulators utilize the compressibility of nitrogen gas to store hydraulic energy, providing reliable performance in BOP control systems, hydraulic power units, and industrial hydraulic circuits worldwide. Each accumulator consists of a seamless high-tensile steel pressure vessel, a flexible bladder with gas valve, and a hydraulic connection with check valve.

All DEENPU bladder accumulators and replacement parts are dimensionally and functionally interchangeable with the corresponding HYDAC models. Part numbers are listed below for cross-reference. Whether you need a complete accumulator or individual spare parts — bladder assemblies, seal kits, repair kits, or oil valve assemblies — DEENPU delivers drop-in replacements that meet or exceed original specifications.

Function & Applications

Since fluids are practically incompressible, hydraulic accumulators use the compressibility of nitrogen gas to store pressure energy. When system pressure increases, the bladder accumulator draws in fluid and compresses the gas; when pressure drops, the compressed gas expands and forces the stored fluid back into the circuit. DEENPU bladder accumulators are used for:

• Energy storage
• Emergency operation (e.g., BOP closing in power failure)
• Force equilibrium
• Leakage compensation
• Volume compensation
• Shock absorption
• Vehicle suspension
• Pulsation damping

Series Overview — HYDAC Interchangeable

• SB330 — Standard bladder accumulator, 330 bar. Available in standard, SB330N (flow-optimised valve, up to 25 l/s) and SB330H (high flow, up to 30 l/s) versions.
• SB400 — 400 bar bladder accumulator.
• SB500 — 500 bar bladder accumulator.
• SB550 — 550 bar bladder accumulator (1 to 5 L).
• SB600 — For higher pressures, with ASME U-stamp design.

General Specifications

Bladder Material Selection

Complete Part Number Cross-Reference (NBR Bladder / Carbon Steel Shell)

The following HYDAC part numbers are fully interchangeable with DEENPU equivalents. Certificate code U = European PED.

Note: SB600 series and additional volumes (50–200 L) available on request. Contact DEENPU for the full part number list and other material/certification combinations.

Interchangeable Spare Parts Available

DEENPU supplies a full range of interchangeable replacement parts for HYDAC bladder accumulators. All spare parts below are dimensionally and functionally interchangeable with HYDAC originals:

• Bladder Assembly — bladder, gas valve insert, lock nut, seal cap, protective cap, O-ring
• Seal Kit — O-rings, washer, vent screw, support ring
• Repair Kit — complete bladder assembly + seal kit
• Oil Valve Assembly — valve, anti-extrusion ring, spacer, lock nut, vent screw

When ordering bladders or repair kits, please state the diameter of the smaller shell port. Gas valves, anti-extrusion rings, and adapters also available separately.

Ordering Information

To order DEENPU bladder accumulators or interchangeable spare parts, please specify:

• Series (SB330 / SB400 / SB500 / SB550 / SB600) and type (standard / N / H)
• Nominal volume (litres)
• HYDAC part number for cross-reference (if replacing an existing unit)
• Bladder material (NBR / ECO / IIR / FKM) and operating medium
• Operating temperature range
• Required certification (PED / ASME / other country code)
• Gas pre-charge pressure (bar)
• Fluid connection type and thread
