Description

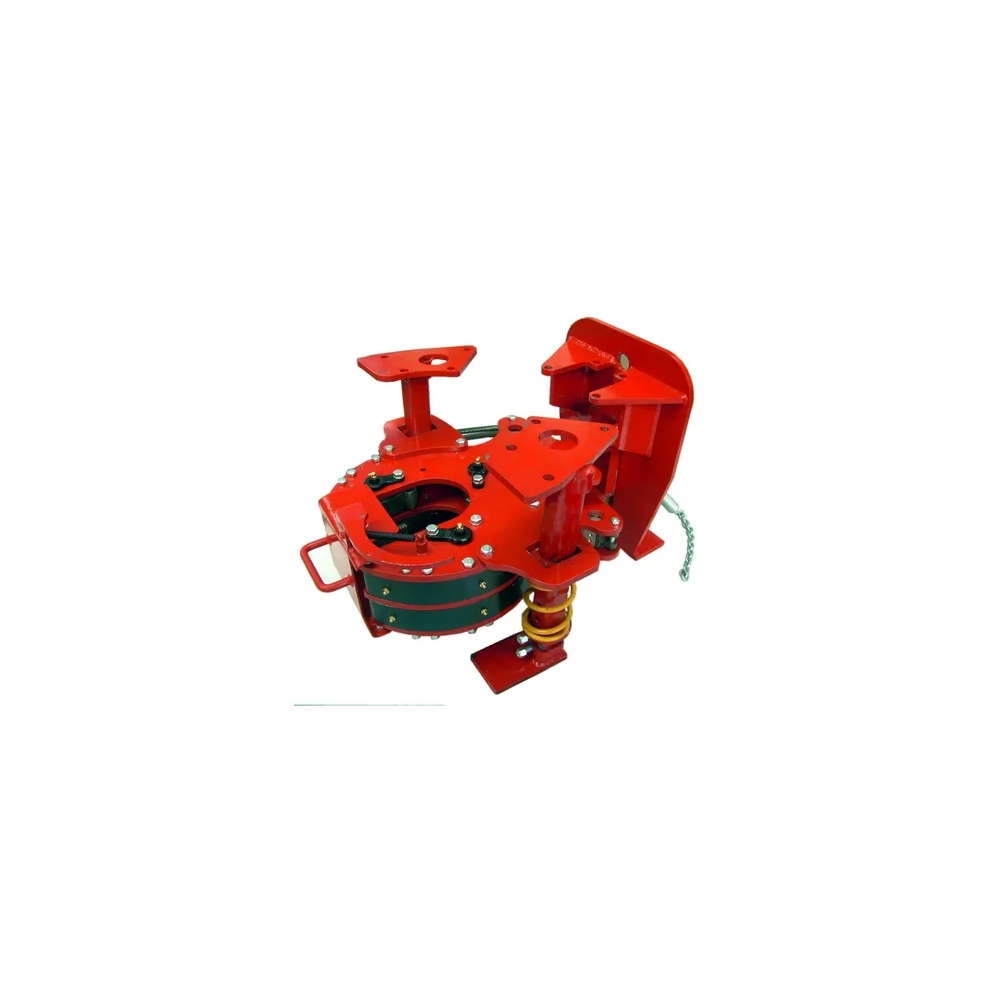

DEENPU supplies the 15A double backup device for YQ115 series hydraulic power tongs (models 4500 / 5500 / 5600). The backup is mounted opposite the power tong to hold the pipe and absorb reaction torque, allowing safe make-up and break-out of tubing connections without spinning or damaging the pipe.
It uses the same advanced tubing clamping technology as the YQ115 series master tong and is an ideal companion tool for making up and breaking out common tubings in oilfield work.
Key Features
- Hydraulic operation — powered by the same hydraulic circuit as the master power tong
- Double backup design — holds the pipe securely against tong reaction torque
- Self-lock safety guard door — locks the manual valve handle automatically when opened for operator safety
- Quick jaw & bushing change — exchange jaw/bushing assemblies for different pipe sizes
- Forged steel construction with spray-paint surface treatment for long field service
Technical Specifications
| Item | Specification |
|---|---|
| Model | 15A |
| Applicable Tongs | YQ115 series power tongs (4500 / 5500 / 5600) |
| Manufacturing Process | Forging |
| Surface Treatment | Spray-Paint |
| Operation Pressure | Hydraulic |
| Material | Alloy Steel |
| Transport Package | Plywood case |
| HS Code | 84314310 |
| Warranty | 6 Months |

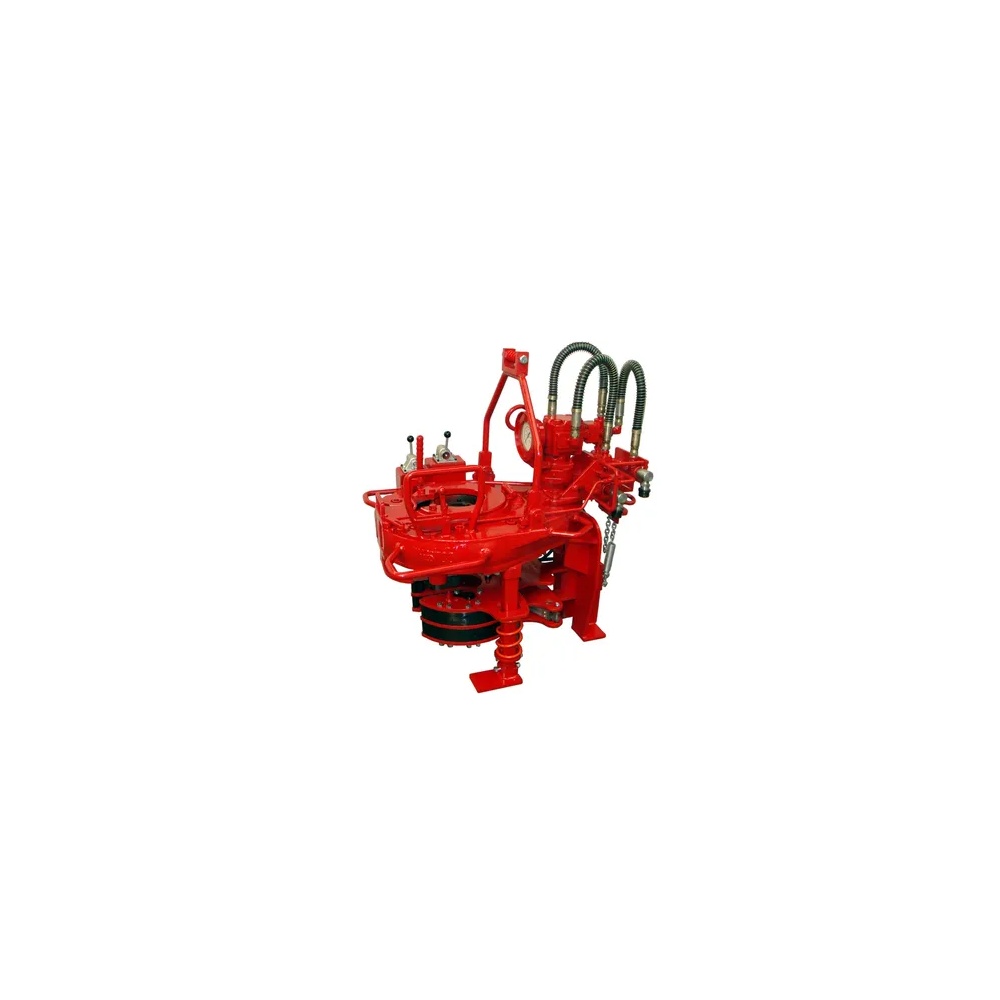

Compatible YQ115 Series Hydraulic Power Tongs
The 15A backup fits the full range of YQ115 series open-type hydraulic power tongs:
- YQ115-9Y (RS/RSX)
- YQ115-9Y (CTS)
- YQ115-9YA (4500, HSC45)
- YQ115-12Y (5500)
- YQ115-16Y (5600)
YQ115 Series Power Tong Specifications
| Specification | YQ115-9Y (RS/RSX) | YQ115-9Y (CTS) | YQ115-9YA (4500) | YQ115-12Y (5500) | YQ115-16Y (5600) |
|---|---|---|---|---|---|
| Tubing Range | 1.05″–1.9″ / 2-3/8″–4-1/2″ | 1.05″–2.063″ / 2-3/8″–4-3/4″ | |||
| High Gear Torque | 1600 N·m (1200 ft·lbs) | 2300 N·m (1700 ft·lbs) | 2000 N·m (1470 ft·lbs) | 1900 N·m (1400 ft·lbs) | 2500 N·m (1840 ft·lbs) |
| Low Gear Torque | 6300 N·m (4650 ft·lbs) | 9000 N·m (6670 ft·lbs) | 7300 N·m (5380 ft·lbs) | 9700 N·m (7150 ft·lbs) | 13000 N·m (9590 ft·lbs) |
| High Gear Speed | 83 rpm | 68 rpm | 96 rpm | 101 rpm | 76 rpm |
| Low Gear Speed | 21 rpm | 18 rpm | 26 rpm | 20 rpm | 16 rpm |
| Rated Working Pressure | 14 MPa (2000 psi) | ||||
| MWP | 17 MPa (2500 psi) | ||||
| Rated Flow | 114 L/min (30 gpm) | ||||
| Max. Flow | 151 L/min (40 gpm) | ||||
| Weight | 350 kg (760 lbs) | 320 kg (705 lbs) | 350 kg (760 lbs) |
Dimensions: 1300×680×380 mm (51.2″×26.8″×15″) for open-type models; 788×1092×660 mm (31″×43″×26″) for CTS model.
Interchangeable & Compatible
DEENPU power tong backups and spare parts are interchangeable with leading OEM power tong brands and fit the same master tong models. Jaw dies, bushings and wear parts for all common tubing sizes are available.
Ordering Information
To order, please specify: master tong model (4500 / 5500 / 5600 or YQ115 series), tubing size range, and whether you need the backup only or a complete tong + backup package. Custom backup sizes available on request.
