Description

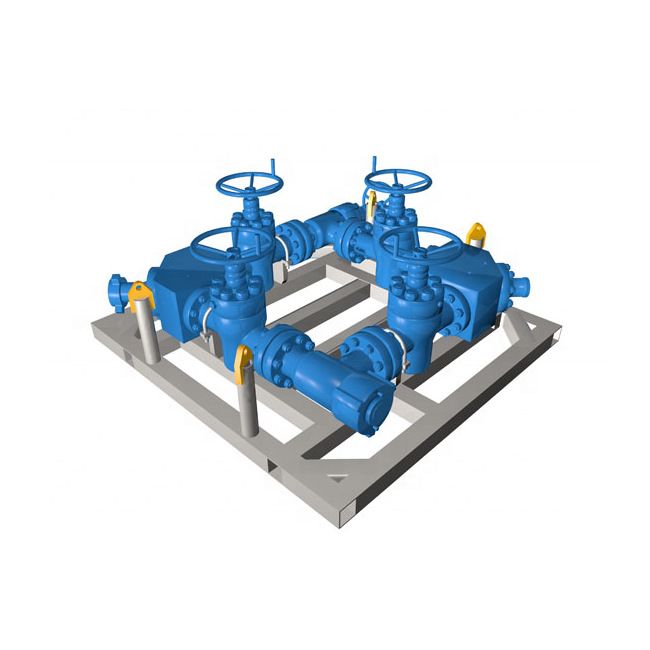

API surface choke manifold / kill&choke manifold / oil manifold
![](https://sc04.alicdn.com/kf/He2ccb1ddc386493d8953bfef486a314fO/237342413/He2ccb1ddc386493d8953bfef486a314fO.png)
Choke and Kill Manifold is used to control well kick and pressure. In case of well kick or blowout, Choke Manifold may control downhole pressure by valves open/close. Heavy slurry may be pumped into well by Kill Manifold to reach pressure balance. Besides, Choke Manifold can be applied to well cleanup and blow-off.
Choke Manifold Control pressure to prevent overflow and blowout. Reduce wellhead casing pressure by relief function of choke valve. Full-bore and two-way metal seal Choke bean features hard alloy inside, delivering high resistance to erosion and corrosion.
The relief valve helps to reduce casing pressure and protect BOP.
Configuration type: single-wing, double-wing, multiple-wing or riser manifold Control type: manual, hydraulic, RTU Kill Manifold Kill manifold is mainly used to kill well, prevent fire and assist in fire extinction.
Product Paramenters
Working Pressure
|
3,000 psi- 15,000 psi
|
Working Medium
|
Crude oil (gas), mud, drilling fluid, gas (H2S)
|
Nominal Bore
|
2 1/16″ – 4 1/16″
|
Temperature Level
|
L, P, U
|
Material Grade
|
EE, FF, HH
|
Manufacturing Level
|
PSL2, PSL3, PSL3G, PSL4
|
Standards
|
API SPEC 6A , API SPEC 16C, NACE MR-0175
|
![](https://sc04.alicdn.com/kf/H2ecb8e0b8c0145abac12232ea74a8ab5U/237342413/H2ecb8e0b8c0145abac12232ea74a8ab5U.png)
Details Images
![](https://sc04.alicdn.com/kf/Hd6e8eadd54c94d90a8c45d54a57904428/237342413/Hd6e8eadd54c94d90a8c45d54a57904428.png)
![](https://sc04.alicdn.com/kf/He2ccb1ddc386493d8953bfef486a314fO/237342413/He2ccb1ddc386493d8953bfef486a314fO.png)
