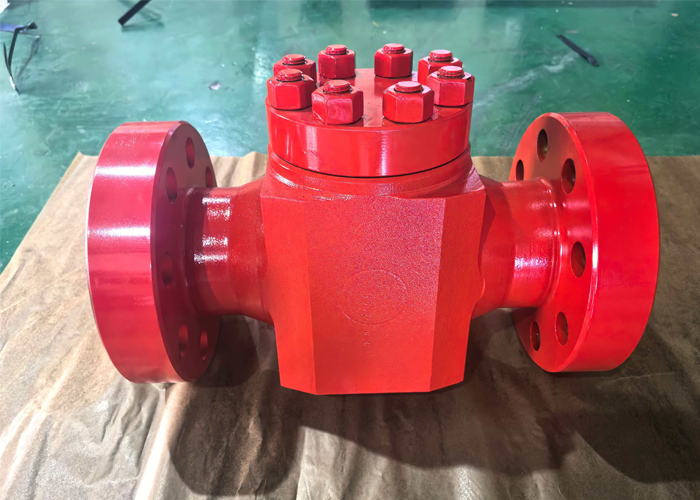

Check Valve, Type R, 2-9/16″

Description

Deenpu API 6A Type R check valve stands out not only for its reliability and efficiency but also for its exceptional versatility. Manufactured in sizes ranging from 2-1/16″ to 7-1/16″ and capable of withstanding pressures from 2,000psi to 20,000psi, these valves offer a comprehensive solution for a wide range of applications within the oil and gas industry.

Crafted with precision engineering and built from high-grade materials, Midland Valves’ Type R check valves ensure unparalleled durability and performance even in the most demanding environments. Compliant with rigorous API 6A standards, these valves provide bubble-tight sealing, preventing reverse flow and safeguarding downstream equipment. With low maintenance requirements and seamless integration into various systems, Deenpus’ API 6A Type R check valves offer operators peace of mind and optimal operational efficiency.

Product Name: 6A Swing Check Valve, Lift Check Valve, One-Way Valve, Non-Return Valve

Nominal Bore: 1-13/16″ – 7-1/16″

Material: AISI 4130 (Integral Forged)

End Connection: 6A Flange

Standards Applied: 6A, 16C, NACE MR0175

Pressure Rating: 2000 PSI to 15000 PSI

Material Class: AA, BB, CC DD, EE, FF

Temp Class: L, P, R, S, T, U, V

Performance Requirement: PR1, PR2

Product Specification Level: PSL1, PSL2, PSL3, PSL4

Paint Color: Red or Customized

Application: Mud Choke Manifold, Kill Manifold, Wellhead Christmas Tree Connection
