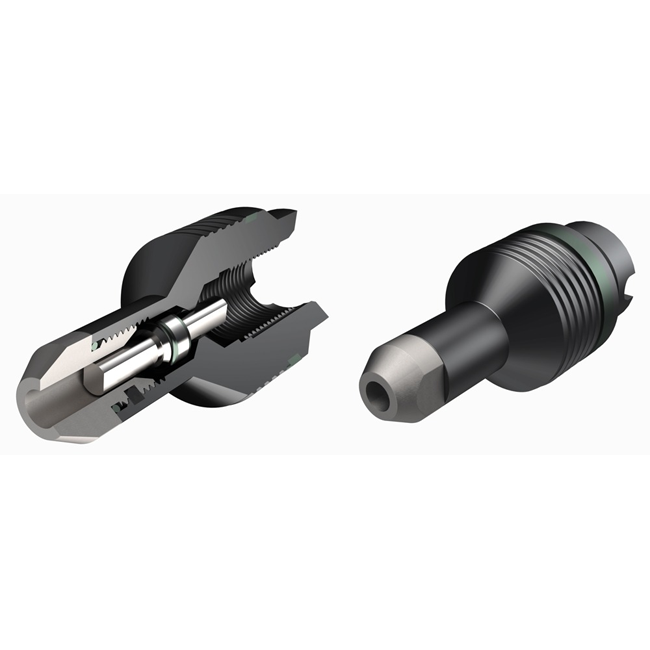

Two Way Check Valve

The Cameron type “H” back pressure valve safely seals tubing pressure to 20,000 psi.
Back pressure valves reduce downtime and operating cost by allowing for repairs without killing the well.
Sizes available from 1-1/4” to 6-5/15” for BPV + TWC
The “H” Two-Way style Check Valve can be installed in the tubing hanger for testing up to 15,000 psi.

Description

Two Way Check Valve



BPV are used during the inflation of Christmas trees, BOP removal and to prevent back flow of fluid into the tubing.Back pressure valves reduce downtime and operating costs by allowing for repairs without killing the well.

Back Pressure Valve Lubricator Tools.

Nominal
Maximum
H Back
H Two-Way Check Valve
Tubing Hanger
Christmas Tree
Size
OD
Pressure
Valve
OEM
OEM
Tubing OD
Min Bore
Min
X-mas
PART
PART
BPV
Vertical
Tree Min
NUMBERS
NUMBERS
Threads
Bore
Drift Dia.
1 ¼”
1.356”
30246-08
41612-01
1.660”
1.286”
1 ½”
1.605”
30246-02
41612-02
1.900”
1.525”
1-5/8”
1.610”
1 ¾”
1.775”
30246-06
41612-03
2.063”
1.695”
1- 13/16”
1.795”
2”
2.020”
30246-01
41612-04
2.375”
1.940”
2- 1/16”
2.030”
2 ½”
2.485”
30246-03
41612-05
2.875”
2.405”
2-9/16”
2.500”
3”
3.030”
30246-04
41612-06
3.500”
2.950”
3- 1/8”
3.060”
3 ½”
3.530”
30246-07
41612-07
4.000”
3.450”
4- 1/16”
3.580”
4”
3.980”
30246-05
41612-08
4.500”
3.900”
4- 1/16”
4.020”
4-3/32”
4.085”
30246-10
41612-09
-----
----
----
----
4-3/8”
4.370”
---
41612-32?
-----
----
----
----
5’
5.010”
30246-13
41612-50
----
4.93
----
----
6”
5.980”
---
---
----
5.9
----
----
6-1/16”
6.062”
---
---
-----
----
----
----
6-5/16”
6.312”
30246-20
41612-36
----
-----
----
----
