API High pressure DSA Double Studded Adapter Flange for Sale

Description

API High pressure DSA Double Studded Adapter Flange for Sale

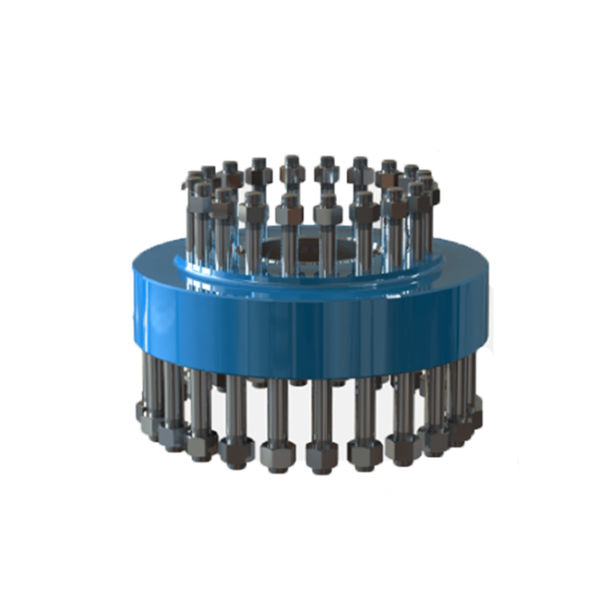

Double Studded Adapter Flange (DSAF) or Double Studded Adapter (DSA) is a flange with a through bore and a ring groove on each side, drilled and tapped bolt hole sets on both sides and tapped end studs complete with nuts fitted on both sides. Unlike a spacer, the two sides are usually different in size and/or pressure rating. Double studded adapter flanges are commonly utilised to connect and adapt flanges with different nominal sizes, pressure ratings, and configurations.



Product Name
Double Studded Adapter Flange
Working Pressure
2000 ~15000psi
Working Medium
oil,natural gas,mud and gas containing H2S,CO2
Working Temperature
-46°C~121°C(Class LU)
Material Class
AA,BB,CC,DD,EE,FF,HH
Specification level
PSL1-4
Performance class
PR1 – PR2
DSAF Description
Flange thickness (T) (mm)
2 1/16″ x 5M To 3 1/8″ x 5M
70
2 1/16″ x 10M To 4 1/16″ x 10M
80
3 1/16″ x 10M To 4 1/16″ x 10M
130
3 1/16″ x 10M To 4 1/16″ x 5M
80
4 1/16″ x 5M To 2 1/16″ x 5M
75
4 1/16″ x 5M To 3 1/8″ x 5M
83
4 1/16″ x 2M To 4 1/16″ x 5M
80
7 1/16″ x 10M To 13 5/8″ x 10M
170
7 1/16″ x 5M To 13 5/8″ x 5M
150
11″ x 15M To 18 3/4″ x 15M
256
11″ x 5M To 13 5/8″ x 5M
144
13 5/8″ x 10M To 11″ x 10M
267
13 5/8″ x 3M To 16 3/4″ x 2M
150
13 5/8″ x 5M To 18 3/4″ x 15M
256
18 3/4″ x 15M To 20 3/4″ x 3M
270
20 3/4″ x 3M To 18 3/4″ x 15M
256
21 1/4″ x 2M To 18 3/4″ x 15M
256
