Carbon Steel Drilling Equipment API Single Arm Elevator Links For Workover Rig

Category: Tags: ,

Description

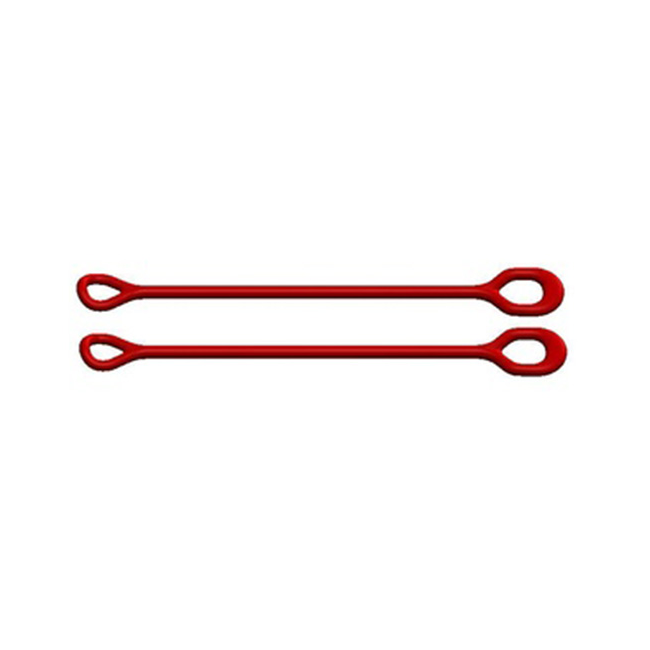

Weldless Links



Weldless links are forged from a single piece of high-quality alloy steel to provide maximum tensile strength. More weight and “plus-diameter” in critical areas make these links extra strong. Short upper eye design means better balance and easier elevator handling, while reducing war of the eye section against the swivel bail or body. The Weldless Links are designed and manufactured according to API SPEC 8C Specification for drilling and production hoisting equipments.

Product Details

⊙The Weldless Links are designed and manufactured according to API SPEC 8C.

⊙Weldless links are forged from a single piece of high-quality alloy steel to provide maximum tensile strength.

Specifications
Size-inches Size-mm Rated Cap/Set tons Size-inches Size-mm Rated Cap/Set tons
1-3/4X48 44×1219 150 3-1/2×72 89×1829 500
1-3/4X60 44×1524 150 3-1/2×96 89×2438 500
1-3/4X72 44×1829 150 3-1/2×108 89×2743 500
1-3/4X84 44×2134 150 3-1/2×120 89×3048 500
1-3/4X96 44×2438 150 3-1/2×132 89×3353 500
      3-1/2×144 89×3688 500
2-1/4 x60 57×1524 250 3-1/2×160 89×4064 500
2-1/4×72 57×1829 250 3-1/2×168 89×4267 500
2-1/4×84 57×2134 250 3-1/2×180 89×4572 500
2-1/4×96 57×2438 250 3-1/2×192 89×4826 500
2-1/4×108 57×2743 250 3-1/2×216 89×5486 500
2-1/4×132 57×3353 250 3-1/2×240 89×6096 500
2-1/4×168 57×4267 250 3-1/2×264 89×6706 500
2-1/4X240 57×6096 250 3-1/2×360 89×9144 500
2-1/4X360 57×9144 250 3-1/2×480 89×12192 500
2-1/4X480 57×12192 250 3-1/2×540 89×13716 500
      3-1/2×600 89×15240 500
2-3/4×60 70×1524 350 3-1/2×720 89×18288 500
2-3/4×72 70×1829 350
2-3/4×84 70×2134 350 4-3/4×108 121×2743 750
2-3/4×96 70×2438 350 4-3/4×132 121×3353 750
2-3/4×108 70×2743 350 4-3/4×144 121×3688 750
2-3/4×120 70×3048 350 4-3/4×160 121×4064 750
2-3/4×132 70×3353 350 4-3/4×180 121×4572 750
2-3/4×144 70×3688 350 4-3/4×216 121×5486 750
2-3/4×150 70×3810 350 4-3/4×240 121×6096 750
2-3/4×168 70×4267 350 4-3/4×264 121×6706 750
2-3/4×180 70×4572 350
2-3/4×192 70×4876 350 5-1/2×180 1407×4572 1000
2-3/4×216 70×5486 350 5-1/2×240 1407×6096 1000
2-3/4×240 70×6096 350 5-1/2×264 1407×6706 1000
2-3/4×290 70×7366 350 Note: All other length upon requests.
2-3/4X300 70×7620 350
2-3/4×360 70×9144 350
2-3/4×480 70×12192 350
2-3/4X540 70×13716 350
2-3/4X600 70×15240 350
