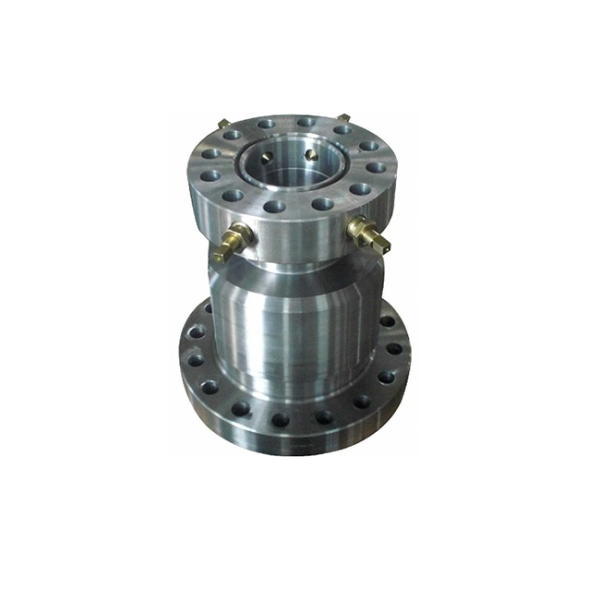

Tubing Head

  • Fabricated with BT technology seal and could be field mounted by cutting casing pipe to accommodate the seal height.
  • Tubing hanger and top flange are designed to run cable through.
  • Several control ports are available for connecting pipeline.
  • Made of forged or special smelt steel, providing high bearing strength, safety and reliability.


Tubing Head

Tubing head is a spool with flange top, flanged bottom and two side outlets. It also can be called tubing spool. Top flange is equipped with lock screws to fix tubing hanger. Tubing head is installed on top of casing head, which consists of body housing and tubing hanger. It can hang tubing string and seal the annular space between tubing and production casing. Our company can manufacturer tubing head with standard structure, which includes tubing hanger installed on the cone of body housing. Tubing hanger can be tapped with BPV thread as per request.

Working Pressure 2000 psi~15000 psi (14 Mpa ~105 Mpa)
Working Medium crude oil, natural, mud
Temperature Ratings -46~121℃(LU)
Material Class AA~HH
Product specification levels PSL1~PSL4
Performance levels PR1~PR2
