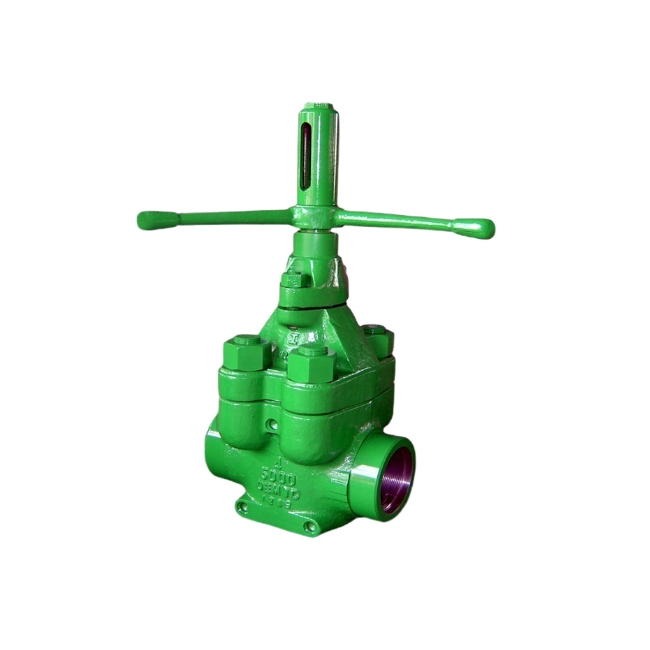

API-6A 2″ -5000PSI Butt Weld Connection Demco Mud Gate Valves
We engineered API-6A Demco DM Mud Gate Valves for the rigorous requirements of oilfield applications. We designed them designed for dependable, heavy-duty performance in abrasive and erosive service conditions.
The Demco series DM mud gate valves are offered in two basic pressure classes: The ANSI series valves conform to the standard flange dimension and pressure requirements for ANSI classes 400, 600, 900 and 1500. Except for the 4″ class 1500, these valves are designed with economical, double acting threaded stem & gate. The 4″ 1500 use the same rising stem design used in the 4″ 3000 API series valve. The API series valves conform to the standard flange and pressure requirements for API classes 2000PSI, 3000PSI and 5000PSI.
DM mud gate valves can be hard seal or soft seal with pressure up to 7500 PSI. Available in sizes from 2″ to 6″ (50 mm to 150 mm). In addition, We also produce and supply mud valve repair kits.
Product Name: Demco Type Mud Gate Valve
Standards: API Spec 6A
Pressure Rating: 2000PSI, 3000PSI, 5000PSI, 7500PSI
End Connection: Flange, Threaded, Butt-Welded, Hammer Union
Material: Stainless Steel, Carbon Steel
Trim Material: HNBR
Working Medium: Oil, Natural Gas, Mud and Gas containing H2S, CO2
Material Class: AA, BB, CC, DD, EE, FF
Temp Class: L, P, R, S, T, U, V
Performance Requirement: PR1, PR2
Product Specification Level: PSL1, PSL2, PSL3, PSL4
Application: Drilling standpipe manifolds, Pump Manifold Block Valves, Production Manifolds, Production Flow Lines, High Pressure Mud Pipelines, Wellheads and Petroleum/Gas Pipelines etc
100% interchangeable with Demco DM series mud gate valves.
Gate material can be nickel plated carbon steel, aluminum bronze, monel or stainless steel, which ensure fine wear-resistant & corrosion-resistant performance.
Regular material of seat is Stainless Steel with HNBR
Optimal for mud drilling operation systems
On-Time Delivery & Competitively Priced

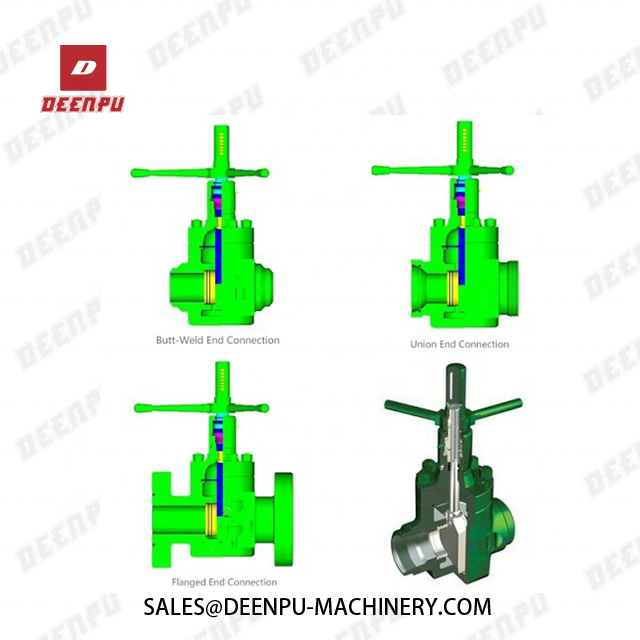

Cut-View & Parts List of 2″ Demco DM Mud Gate Valve
