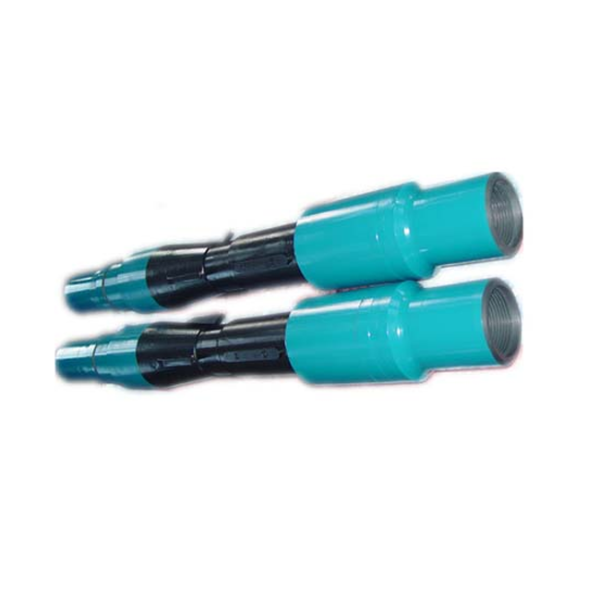

Junk Basket

  • A lifting sub is provided for ease of handling which includes a storage space for the steel ball used in the operation of the tool.
  • A single junk catcher is used in each assembly.
  • Itco Junk Basket may be easily converted to a fishing magnet by replacing the catchers with magnet insert.
  • Alternate Mill Shoes available are Type B and Type C.
Category: Tag:

Description

Junk Basket is a fishing tool which use the drilling fluid partly reverse in the bottom hole, to latch small junk in the basket. It is used for fishing all types of small junk, objects in well bores, such as bit cones, cutting blades and hand tools, etc. There are two types: ITCO Junk Basket and Reserve Circulation Junk Basket.

Techanical Specification

1.ITCO Junk Basket

Type ODmm(inch) ConnectionAPI Well bore rangemm(inch) OALmm(inch)
LL-P146 151(5-15/16) NC38 155.6~165.1(6-1/8~6-1/2) 1376(54-11/64)
LL-P200 205(8-5/64) NC50 212.7~241.3(8-3/8~9-1/2) 1766(69-17/32)
LL-P257 257(10-1/8) 6-5/8REG 273~295.3(10-3/4~11-5/8) 1770(69-11/16)
LL-P280 286(11-1/4) 6-5/8REG 298.5~311.2(11-3/4~12-1/4) 1846(72-43/64)
LL-P381 381(15) 7-5/8REG 406.4~444.5(16~17-1/2) 1780(70-5/64)



  1. Reserve Circulation Junk Basket

type Body ODmm(inch) Mill shoe ODmm(inch) Max. fishingmm(inch) Steel ball ODmm(inch) Hole size Rangemm(inch) Connection
LL102 102(4) 108(4-1/4) 66(2-10/16) 32(1-1/4) 107~114.3 NC26
LL114 114(4-1/2) 120(4-3/4) 80(3-2/16) 32(1-1/4) 117.5~127 2-7/8REG
LL121 121(4-3/4) 127(5) 80(3-2/16) 32(1-1/4) 130~139.7 3-1/2REG
LL130 130(5-1/8) 135(5-5/16) 89(3-8/16) 32(1-1/4) 155.6~165. NC31
LL146 146(5-3/4) 151(5-15/16) 108(4-4/16) 35(1-3/8) 155.6~165.1 NC38
LL165 165(6-1/2) 171(6-3/4) 124(4-14/16) 40(1-9/16) 212.7~241.3 4-1/2REG
LL178 178(7) 184(7-1/4) 131(5-3/16) 43(1-11/16) 212.7~241.3 NC50
LL200 200(7-7/8) 205(8-1/16) 157(6-3/16) 43(1-1/16) 212.7~241.3 NC50
LL232 232(9-1/8) 237(9-5/16) 179(7-1/16) 48(1-57/64) 273~295.3 6-5/8REG
LL257 257(10-1/8) 263(10-3/8) 200(7-14/16) 48(1-57/64) 273~295.3 6-5/8REG
LL286 286(11-1/4) 291(11-7/16) 220(8-11/16) 48(1-57/64) 298.5~311.2 6-5/8REG
LL350 350(13-1/8) 356(14) 285(11-4/16) 60(2-23/64) 406.4~444.5 6-5/8REG
LL381 381(15) 400(15-3/4) 315(12-6/16) 60(2-23/64) 406.4~444.5 7-5/8REG
