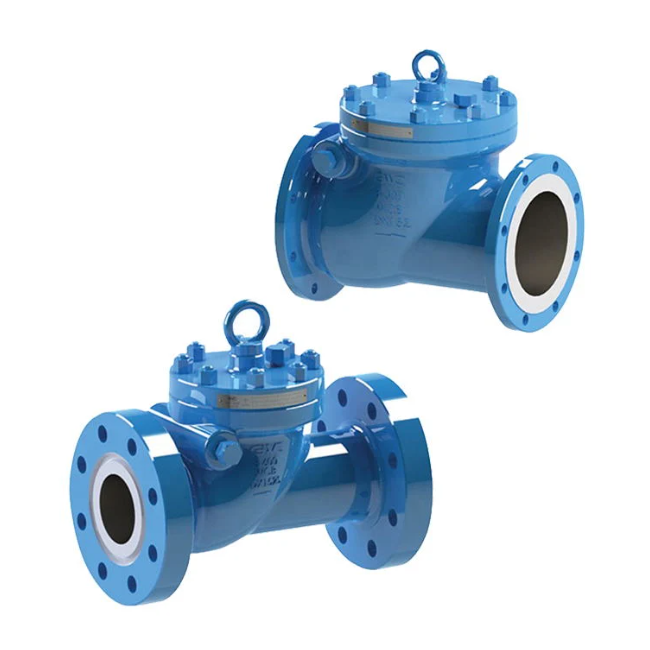

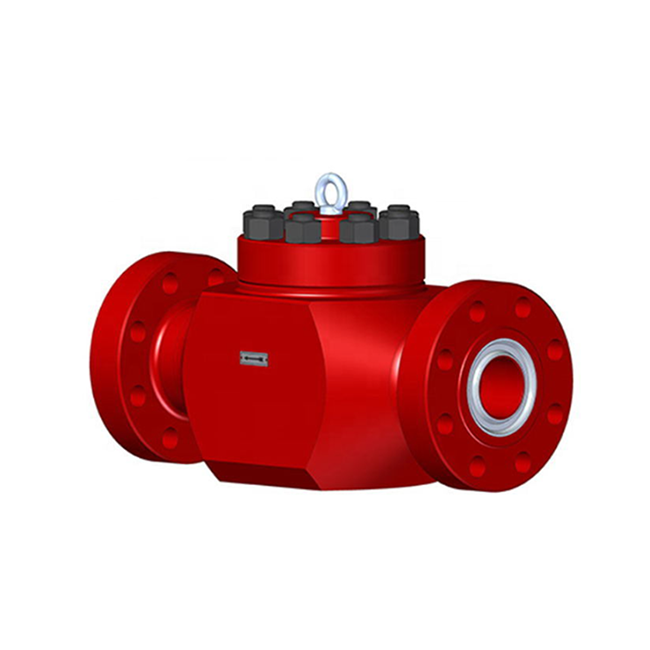

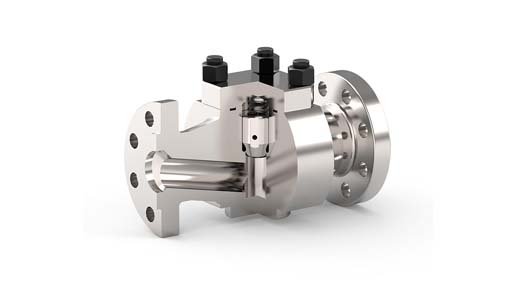

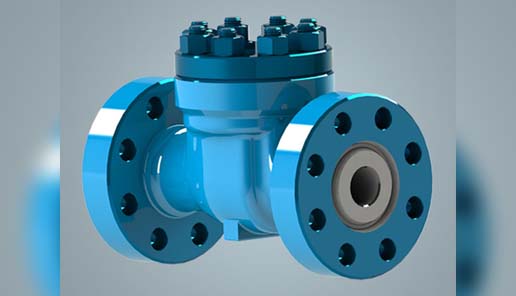

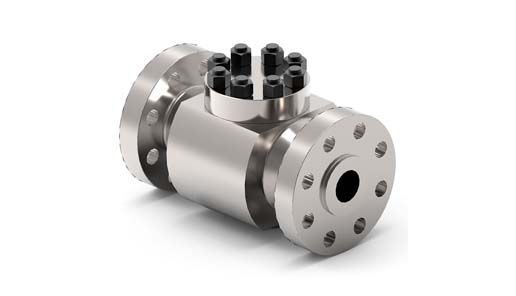

API 6A Check Valve, also referred to non-return valve, or one-way valve, is a valve that normally allows fluid (liquid or gas) to flow through it in only one direction. An important concept in check valves is the cracking pressure which is the minimum upstream pressure at which the valve will operate. We can produce both swing type check valve and lift type check valve. Available in bore sizes from 1-13/16″ to 7-1/16″ and pressure ratings from 2,000 to 15,000 PSI. The standard material is forged AISI4130 alloy. All of our Check Valves are fully designed, manufactured, and tested as per API 6A and API 16C standards and have been widely used on oilfield wellhead Christmas tree and manifolds with reliable performance.
Product Name: API 6A Swing Check Valve, Lift Check Valve, One-Way Valve, Non-Return Valve
Nominal Bore: 1-13/16″ – 7-1/16″
Material: AISI 4130 (Integral Forged)
End Connection: API 6A Flange
Standards Applied: API Spec 6A, API 16C, NACE MR0175
Pressure Rating: 2000 PSI to 15000 PSI
Material Class: AA, BB, CC DD, EE, FF
Temp Class: L, P, R, S, T, U, V
Performance Requirement: PR1, PR2
Product Specification Level: PSL1, PSL2, PSL3, PSL4
Paint Color: Red or Customized
Application: Mud Choke Manifold, Kill Manifold, Wellhead Christmas Tree Connection
