API 7K High Pressure Gauge with Flange
The pressure gauge we offered is We specialized in mud pump or standpipe mud pump.
It is available in all possible connection requirements and pressure ranges, with high pressure endurance (up to 30%) makes it suitable for various applications such as mud pumps, standpipe mud pumps, petroleum, well drilling etc.
We can provide a full range of gauges for you. Our pressure gauges can offer high accuracy and dependability for your standpipe mud pump and other drilling and production applications where precision pressure measurements are required.
Mud Pump Pressure is extremely important to the drilling process. The Mud Pump Pressure Gauge enables the driller to monitor the pressure while drilling. Any unusual change in pressure will alert the driller of down hole problems. Pressure too low could indicate washed out pipe or bit nozzle, loose joint or broken drill string, worn pump packing or liners, or lost returns due to formation breakdown. Pressure too high could indicate a plugged drill bit or an increase in mud density or viscosity. Reliable indication of mud pump pressure provides an early warning of circulation problems, enabling the driller to make corrections avoiding major problems.
1. Special mechanical design 2. Easy installation 3. High reliable and good performance 4. Accurate pressure readings with quick response to pressure changes 5. Built-in damping to minimize gauge fluctuations 6. Liquid filled gauge minimizes vibration and wear to gauge movement 7. Clear lens for easy reading 8. Temperature range -45ºC to 120ºC

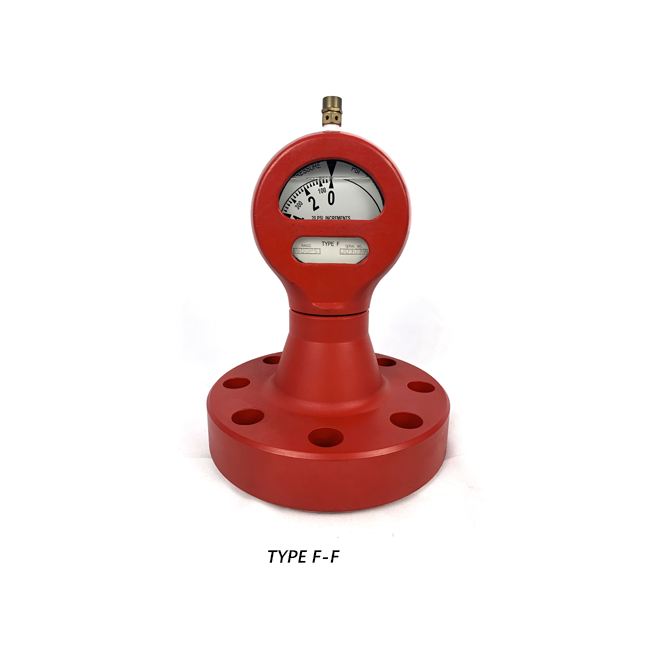

Type D: Dimensions: 7-5/8 inch diameter dial case and 14-3/4 inch in height Pressure range: 0-6,000 psi(1000 psi, 3000 psi, 5000 psi, 6000 psi) Standard end connection: 2 inch NPT female threaded connection Type F: Dimensions: 4-7/8 inch diameter dial case and 9-7/8 inch in height. Pressure range: 0-20,000 psi Standard end connection: 2″ NPT threaded female and 1″ NPT threaded male connection.
|Diameter Case Size||Ø60||Ø100||Ø150|
|Accuracy Grade||2.51 <25MPa)||1.6(> 40MPa)|
|Measuring Range (Mpa)||0.1~0, 0.1~0.06, 0.1~0.15.0.1~0.3.0.1~0.5. 0.1~0.9.0.1~1.5. 0.1~2.4. 0.1. 0.16,0.25, 0.4. 0.6, 1, 1.6. 2.5, 4.6, 10. 16, 25||0.1-0, 0.1-0.06, 0.1-0.15, -0.1-0.3,-0.1~0.5. -0.1~0.9. 0.1~1.5. 0.1~22.214.171.124, 0.16. 0.25. 0.4. 0.6, 126.96.36.199.5. 4.6, 10, 16, 25, 40, 60,100,160, 250|
|Connection Type||M14x1.5||M20x1.5 ,G 1/2, 1 1/8-12UNF|
|Environment Temperature||-45ºC~ +70ºC|
