Air Actuator Cylinder(3”QG-00-00)
Description

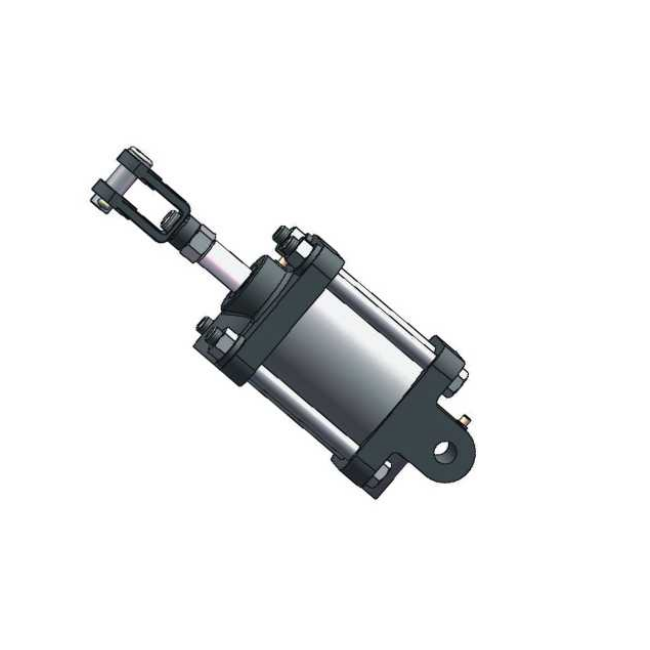

Air Actuator Cylinder(3”QG-00-00)
| 3 “空气缸 Air Actuator Cylinder(3”QG-00-00) |
| In repair kit维修包 |
(Item)序号 |
图号(Part No.) |
名称(Description) |
数量Qty |
|
1 |
GBAT91-2000 4×20 |
开口销 Cotter Pin |
1 |
|
2 |
3″QG-00-07 |
销轴 Pin |
1 |
|
3 |
3″QG-00-06 |
连接叉 Clevis |
1 |
|
4 |
GB/T6170-2000 M12 |
六角螺母Lock Nut |
1 |
| ▲ |
5 |
GB1235-76 20X2.4 |
O形密封圈O-Ring |
2 |
|
6 |
3″QG-00-04 |
铜套 Bushing |
1 |
|
7 |
GB/T6170-2000 M10 |
六角螺母Lock Nut |
4 |
|
8 |
GB/T 93-1987 10 |
弹簧垫圈 Spring Washer |
4 |
|
9 |
GB273-66 |
油杯 Oii Cup |
2 |
|
10 |
3″QG-00-05 |
上盖 Head,Rod End |
1 |
|
11 |
3″QG-00-03 |
纸垫 Gasket |
2 |
|
12 |
3″QG-01-02A |
活塞杆Piston Rod |
1 |
| ▲ |
13 |
GB/T3452.1-1992 9×1.8 |
O形密封圈O-Ring |
1 |
|
14 |
3″QG-01-01A |
活塞 Piston |
1 |
|
15 |
3″QG-00-10 |
导向环 Back-Up Ring |
1 |
| ▲ |
16 |
GB/T3452.1-1992 67×3.55 |
O形密封圈O-Ring |
1 |
|
17 |
GB/T93-1987 10 |
弹簧垫圈 Spring Washer |
1 |
|
18 |
GB /6170-2000 M10 |
六角螺母 Nut |
1 |
|
19 |
3″QG-00-02 |
缸筒 Barrel |
1 |
|
20 |
3″QG-00-01A |
下盖 End Cap |
1 |
|
21 |
GB/T5780-2000 M10x120 |
六角头螺栓 Bolt |
4 |
