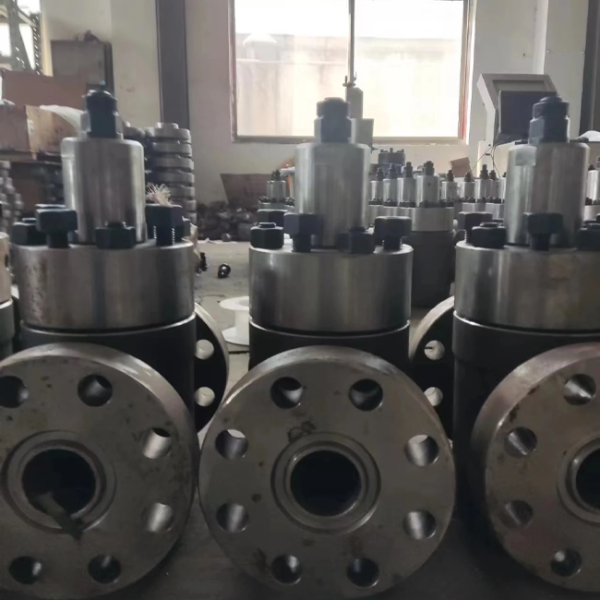

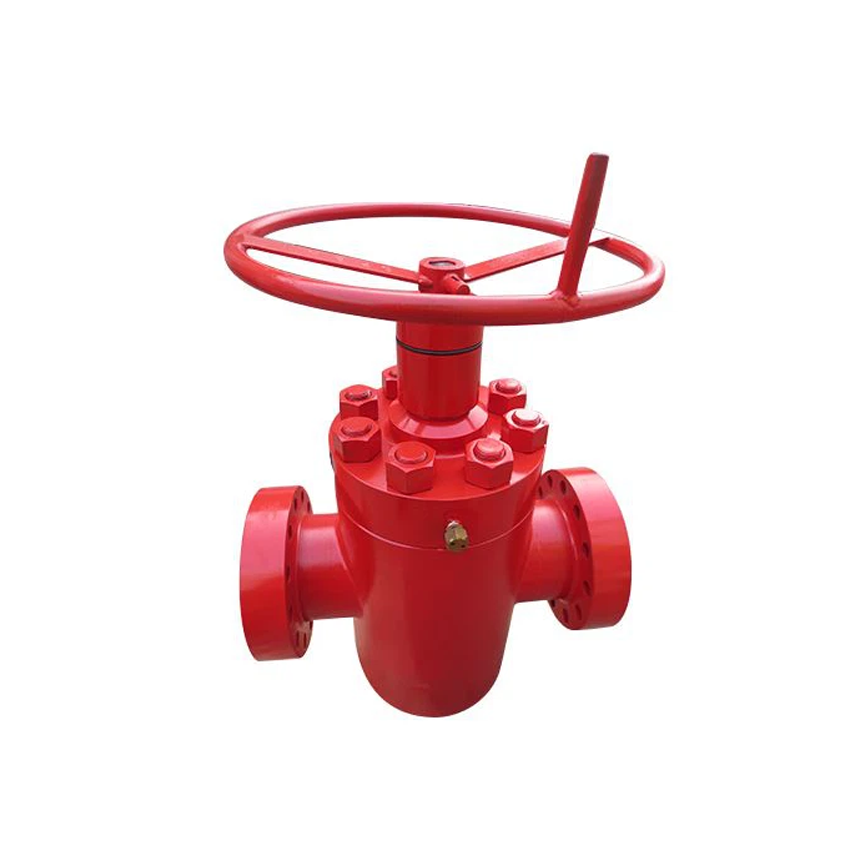

10000psi FC Industrial Gate Valve
Gate Valve ‘FC’ type is a field-proven valve which provides reliability and interchangeability, bi-directional sealing and a non-rising stem making it ideally suited for drilling Manifolds, X-mas trees and severe service,one piece gate helps to prevent line sediment from entering the body cavity and prevents pressure locks when the upstream pressure drops,Easily equipped with Hydraulic Actuators for Manifold or Subsea service.
API 6A Gate Valve FC type feature:
- Forged or Cast Body & Bonnet, A wide range of body and trim materials to meet various operating conditions.
- Metal-to-Metal seal, gate to seat, seat to body, bonnet seal and stem backseat.
- Bi-directional Sealing,
- All internal parts can be inline changed,No special tools are needed to change gate and seat assembly.
- Heavy duty thrust bearing is used to absorb stem thrust and reduce operating torque.
- The Stem pin protects the stem and internal parts from failure by shearing if the handwheel is over-torqued
- We are the proved vendor for top wellhead manufacturer in the Worldwide
- 100% interchangable with Cameron FC Type
- We try to save your 10% or more
|Bore Size||2 1/16″|
|Material Class||AA – HH|
|Working Temperature||75°F – 350°F|
|PSL||1 – 4|
|PR||1 – 2|
