Description

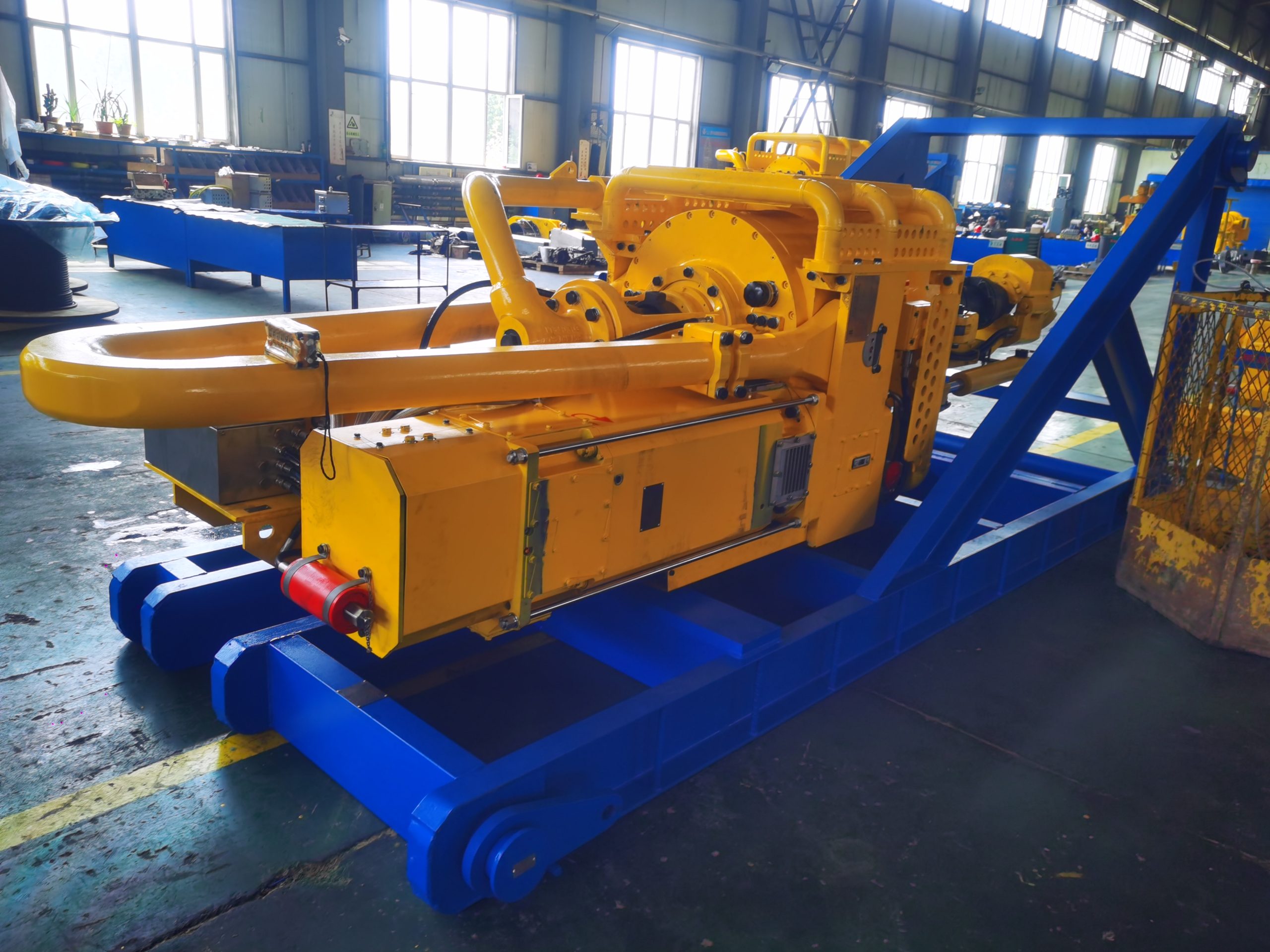

Top Drive Drilling Equipment (“TD”or “Top Drive”) replaces the kelly and rotary table with a powered swivel and pipe handling device, this can rotate the drilling pipe, screw and unscrew the subs, and move vertically along the guide rail.
Top Drive can rotate drilling string directly from the upper derrick and drill downwards along the guidance of a guide rail. Top Drive is stuitable for rotary drilling, mud circulation, pipe connection, make-up and break-out, back reaming and other drilling operations.
The most significant technological innovation since rotary table drilling technology, Top Drive technology takes the automation of your drilling rigs to the next level, reducing risk, complexity and accidents.
Features
- AC VFD technology including torque and speed accuracy control.
- PROFIBUS control with reduced electromagnetic interference.
- PLC, HMI and other intelligent control systems.
- Dual load path hoisting syste extends the service life of main bearings.
- Independent HPU with improved reliability and easy maintenance.
| Model | Nominal drilling depthM | Rated loadkN（Ton） | Continuous drilling torquekN. M | Uncoupling torquekN.M | Main shaft passage mm | Mud Circulating pressure MPa | Clamping range of the backup tongmm | Speed rangeMm | Drilling power hp |
| DQ120BSC | 12000 | 9000(1000) | 85 | 135 | 102 | 52/70C |
87 ~ 250 |
0 ~ 200 | 600X2 |
| DQ90BSD | 9000 | 6750(750) | 89 | 52 | |||||
| DQ90BS | 110 |
75 |
500X2 | ||||||
| DQ70BSD | 7000 | 4500(500) | 70 | 90 | 35/52b | ||||
| DQ70BSE | 60 | 75 | 0 ~ 220 | 400X2 | |||||
| DQ50BC | 50 |
35 |
|||||||
| DQ40BC | 5000 | 3150(350) | 40 | 60 | 0 ~ 180 | 500 | |||
| DQ40BCQ | 4000 | 2250(250) | |||||||
| DQ40BCQ | 30 | 45 | 0 ~ 200 | 400 | |||||
| DQ40Y | 30 | 0 ~ 180 | 540 | ||||||
| DQ30Y | 3000 | 1700(190) | 22 | 40 | 64 | 0 ~ 150 | 400 |
Our company has been in the oil & gas drilling equipment industry for over more years, We are here to serve all your drilling equipment needs.
