Tee & Cross

  • The basic material is usually AISI 4130 Alloy Steel or AISI410 Stainless Steel.
  • Overlays like SS 316L or Inconel 625 on ring groove can be incorporated for corrosion resistance.
  • Studded/Flanged crosses and tees shall undergo hydrostatic body test and drift test as per API 6A standards prior to delivery.
  • Custom sizes and specifications are available upon request.
  • Simple structure with reliable performance.

Description

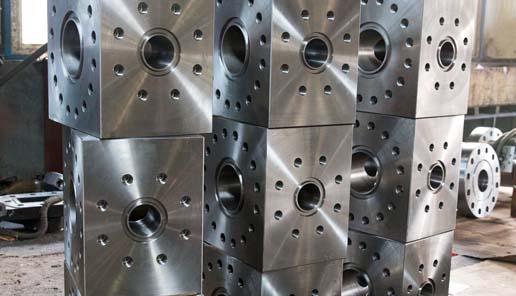

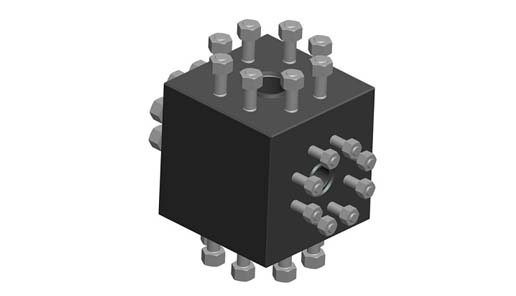

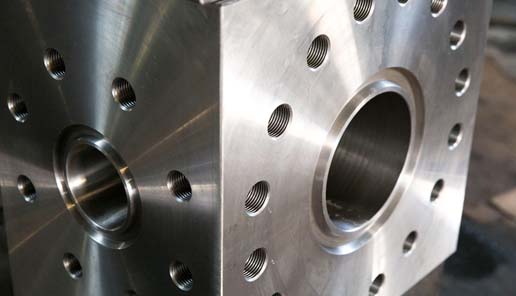

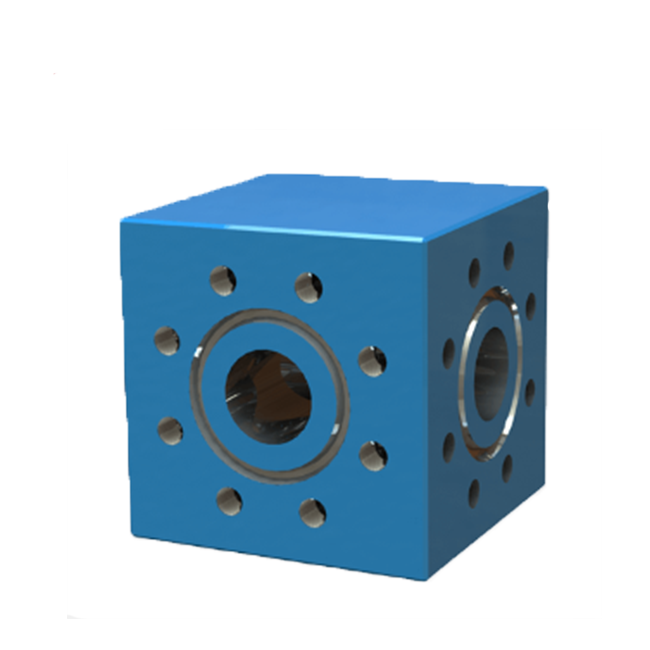

Studded Tees and Crosses are very important components for Wellhead Assembly Christmas Tree. They are assembled on the X-mas Tree where an angled connection is required. They are made from solid metal block. Boundary Dimensions – Bore and centerline-to-face dimension shall conform to API 6A standards. Common configurations include 4 way, 5 way, and 6 way crosses along with ells and tees with pressure ratings from 2,000 to 20,000 psi.

Techanical Specification

Standard Carried:  API Spec 6A, NACE-MR0175

Nominal Bore:  2 1/16 in, 2 9/16 in, 3 1/8 in, 3 1/16 in, 4 1/16 in

Rated Working Pressure:  2000 psi ~ 20000 psi (14Mpa ~ 140Mpa)

Material Class:  AA, BB, CC, DD, EE, FF

Material:  AISI4130 Alloy or AISI410 Stainless Steel

Connection Type: Flanged or Studded

Temp Class: L, P, R, S, T, U, V

Product Specification Level: PSL1 – PSL4

Performance Requirement:  PR1, PR2

Application: Wellhead Assembly & Christmas Tree
