Rotary Table
The Rotary Table is manufactured according to API 7K specification, the casing is cast steel and steel plate welding structure, the basement is steel casting, it is welded with steel plate after coarsely machining, and finish machining after internal annealing for stress elimination. The transmission gear is the mid-hard tooth face arc cusp gear, the intensity is high, the transmission is steady, the transmission torque is big.
| Model | Units | ZP60 | ZP70 | ZP100 | ZP125 | ZP135 | ZP175 | ZP205A | |
|---|---|---|---|---|---|---|---|---|---|
| Dia.OfOpening | mm(in) | 150 | 180 | 260 | 305 | 292 | 444.5(171/2) | 520.7(201/2) | |
| TableAxistoCenterInner | mm(in) | 475(183/4) | 610(24) | 610(24) | 610(24) | 1118(44) | 1118(44) | 1353(531/4) | |
| RowSprocketTeeth | |||||||||
| Max.StaticLoad | kN | 360 | 585 | 900 | 1350 | 1350 | 2700 | 3150 | |
| Max.WorkingTorque | Nm | 800 | 800 | 800 | 11230 | 12000 | 14000 | 22555 | |
| Max.Speed | rpm | 300 | 300 | 300 | 300 | 300 | 300 | 300 | |
| GearRatio | 3.5 | 3.75 | 3.79 | ||||||

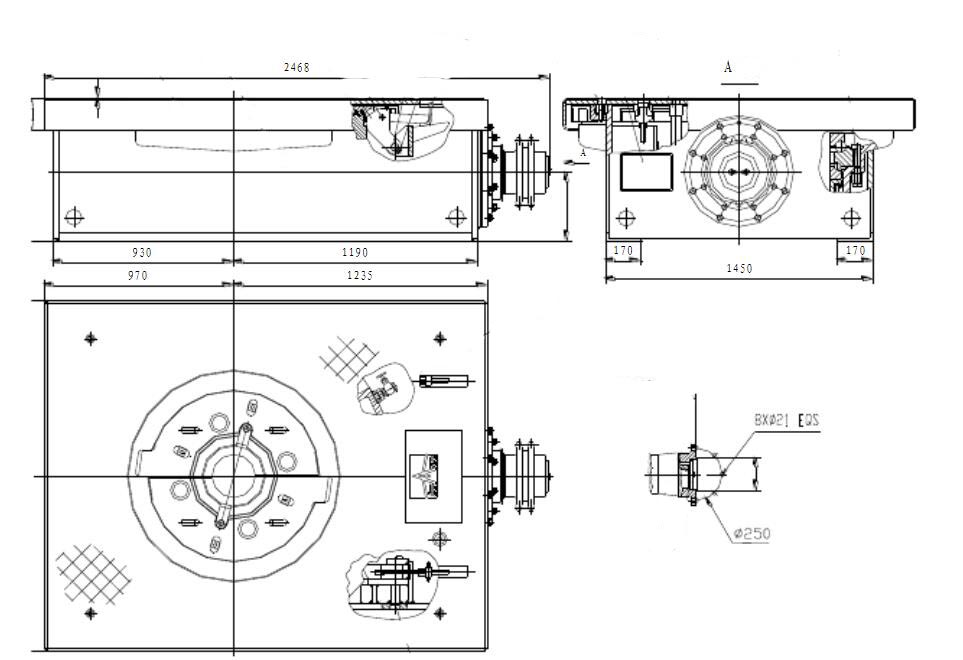

| Overall | A | mm | 975 | 975 | 1720 | 1705 | 1706 | 1974 | 2204 |
| Dimensions | B | A | 570 | 890 | 1070 | 1070 | 1366 | 1410 | |
| C | 540 | 540 | 580 | 381 | 381 | 560 | 705 | ||
| Weight | KG | 500 | 530 | 1240 | 3890 | 1365 | 3666.5 | 5542 | |
Our company has been in the oil & gas drilling equipment industry for over more years, We are here to serve all your drilling equipment needs.
