Fmnc Chiksan Pup Joints for Sale Fig 602 Fig 1002 Fig 1502

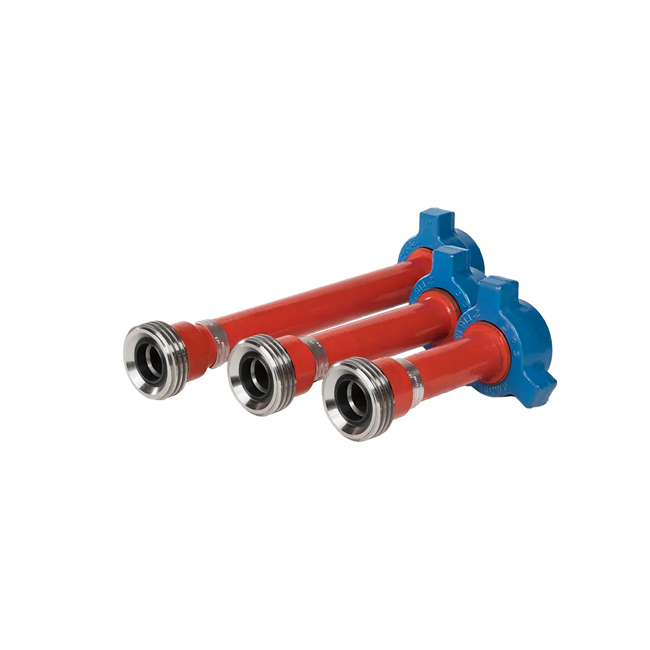

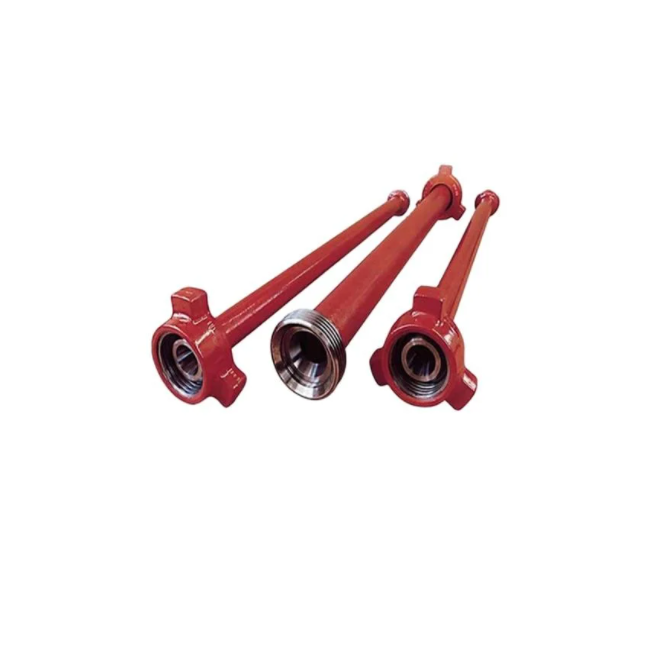

Pup Joints – Flowline Pipes
Pup joints (flowline pipes) are designed to be compatible with FMC Chiksan pup joints and SPM pup joints, based on techlonogies imported from FMC pup joints.
Integral Pup Joints are available in lengths to 10 feet to handle fluids at cold working pressures to 15,000 psi. Sour gas pup joints are also available.
Recommended Service
- High-pressure well service flowlines, frac manifold, well testing internal connections, cementing and circulating flowlines
- Other well service, stimulation and abrasive applications
Available
- Cold Working Pressure: from 6,000psi to 15,000psi
- Nominal Pipe Size: 2″ to 4″
- End Connection: Fig 602, Fig 1002, Fig 1502
- Sour gas service are available
| Description | End Connection | Cold WP | Diameter (inch) | |||
| 1-1/2″ | 2″ | 3″ | 4″ | |||
| Integral Pup Joints | FIG 602 | (6,000psi 42Mpa) | y | y | y | |
| FIG 1002 | 10,000psi (70Mpa) | y | y | y | ||
| FIG 1502 | 15,000psi (105Mpa) | y | y | y | ||
| Integral Pup Joints for sour gas service | FIG 602 | 5,000psi (35Mpa) | y | y | y | |
| FIG 1002 | 7,500psi (53Mpa) | y | y | y | ||
| FIG 1502 | 10,000psi (70Mpa) | y | y | y | ||
| Welded Pup Joints | FIG 602 | 6000psi (42Mpa) | y | y | y | |
| FIG 1002 | 10,000psi (70Mpa) | y | y | y | y | |
| FIG 1502 | 15,000psi (105Mpa) | y | y | y | y | |
Our company has been in the oil & gas drilling equipment industry for over more years, We are here to serve all your drilling equipment needs.
