Mud Pump Liner

Description

Mud Pump Liner

Mud pump liners have to withstand severe operating conditions during drilling operations. They circulate up to 200 gpm of water and slurry at pump pressures as high as 7,500 psi.. The cir- culated mud contains a large volume of abrasive, corrosive contaminants.

We offer Liners with Ceramic (Zirconia and Aluminium oxide) and Steel (Metal and Bi-metal) materials for all common brands of the mud pump and triplex mud pump.

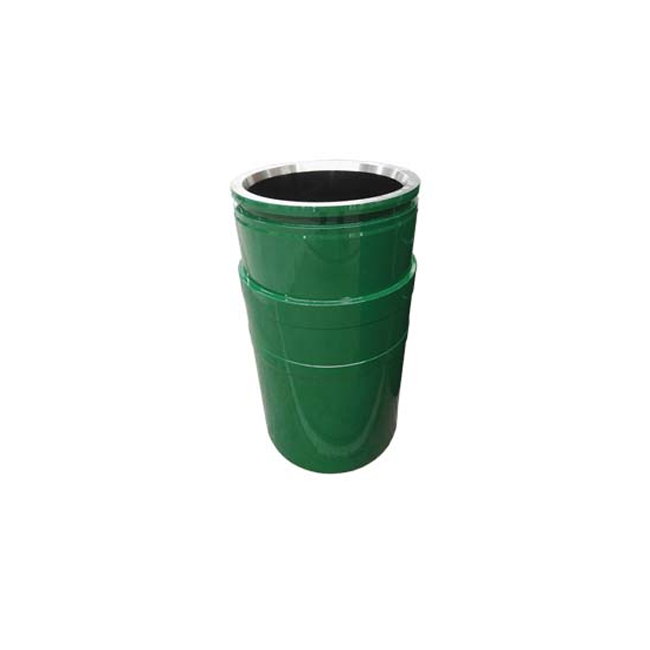

Mud Pump Bi-metal Liner

Bi-metal liners (double metal liners) are made of forged steel shell and wear-resistant sleeve of high chromium iron. In the production process, the size accuracy should be strictly controlled, which can ensure that they can be easily and stably installed.

The inner sleeve with high finish and hardness is wear-resistant, corrosion-resistant and has a long service life. The bi-metal liners are suitable for a lot of bad working conditions. Its service life is more than 800 hours.

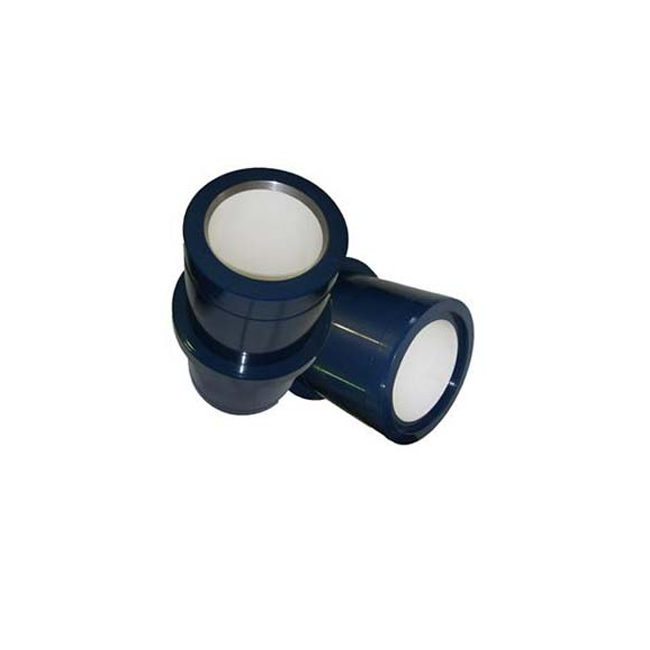

Mud Pump Ceramic Liner

Ceramic Liners are made of a ceramic inner sleeve and a forged steel outer shell.

Compared with Alumina type, Zirconia type liners have better toughness properties and a much longer service life. Piston wear and water consumption for lubrication can be reduced as well.

Liner Seal Ring

Liner Seal Rings is designed and made with hard corner which is an integral part of seal rings and soft nitrile element rubber center.

All  liner products are interchangeable with O.E.M. products. Let us be your one-stop shop for your whole fleet of pumps. Please refer to “Suitable Pump Models” Lable for more details.

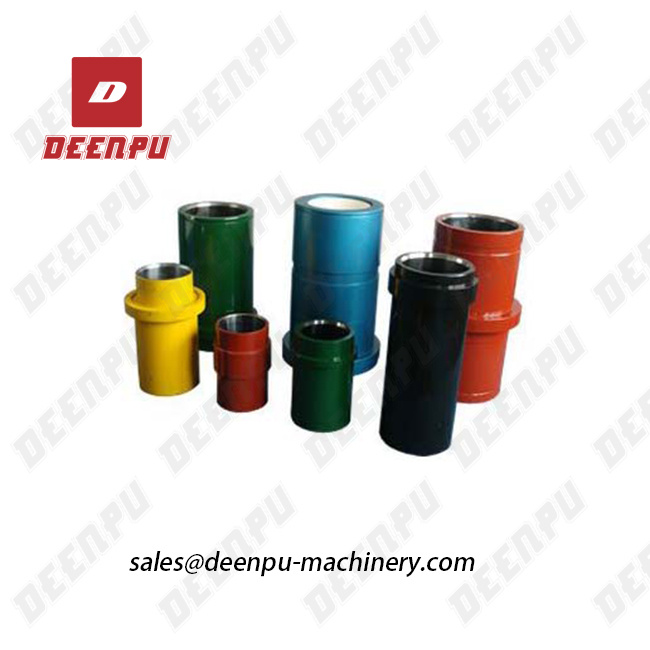

Types of Mud Pump Liner& Photos Bi-metal

Bi-matal Liner

Hardened Steel

Hardened Steel Liner

Chrome PlatedChrome Plated Liner CeramicCeramic Liner
Description Hy-chrome inner Sleeve and Forged Steel outer Hull Hardened Steel Core plated by Chrome Ceramic Zirconia
Material AISI 1045/
ASTM A532M
AISI 1045 AISI 1045
Chrome-plated bore
AISI 1045
Zirconia-based Ceramic
Hardness HRC 60~69 HRC 58~62 HRC 58~62 HRC 92~94
Normal Service Life(Hr) 800 800 800 2000~4000
Operating condition Pressure
(Max.,in psi)
7500 7500 7500 7500
Temperature 20~240℉ 20~230℉ 20~240℉ 20~350℉
pH (Normal) 7.5~10.2 7.5~10.2 7.5~10.2 7.5~10.2
Hydrogen Sulfide
(Max.,in ppm)
22 22 22 24
Sand Solids (Normal) 0.21% Oil Based
and Oil Emulsion
0.21% Oil Based
and Oil Emulsion
0.21% Oil Based
and Oil Emulsion
0.21% Oil Based
and Oil Emulsion
Bomco F-500 F-800 F-1000 F-1300 F-1600 F-1600HL
Brewster B-1000-T B-1100-T B-1300-T B-1600-T
HONGHUA HHF-500 HHF-800 HHF-1000 HHF-1300 HHF-1600 HHF-1600HL HHF-2200HL
Emsco F-350 F-500 F-650 F-800 F-1000 FD-1000 FB-1300
FB-1600 FA-1600 FA-1300 FC-1600 FD-1600 FC-2200D-300/500 D-175
D-225 D-375 D-500 D-550 DA-500 DB-500 D-700
DA-70 DB-700 DC-700 DA-850 DB-850 DC-850 D-1000
DB-1000 DC-1000 D-1000-A D-1350 D-1650
National 7-P-50 8-P-80 9-P-100 10-P-130 12-P-160 14-P-220 JWS-165-L
JWS-340 JWS-400 C-250 C-350 K-380 K-500-A G-700
K-700 N-1000 N-1300 N-1600
Oilwell 350-PT A-650P-T A-850-PT A-1100-PT A-1400-PT A-1700-PT HD-1400-PT
HD-1700-PT 612-P 212-P 214-P 218-P 700-P 816-P
818-P 1000-P
Ideco T-500 T-800 T-1000 T-1300 T-1600 MM-450 MM-500-F
MM-600-A MM-700-F MM-1000
Gardner Denver PZ-7 PZ-8 PZ-9 PZ-10 PZ-11 FK-FXK FY-FXD
FD-FXX FG-GXG FG-FXG KG-KXG FQ-FXQ FF-FXF FF-FXP
TGE TGF TGH PAH-275
LS National Mud Pumps 3NB-500C 3NB1000C 3NB1300C 3NB1600
Wirth Mud Pump TPK1000 TPK1600 TPK2000
Russian Pumps UNBT-950 UNB-600 8T-650 UNBT650 NBT600 UNB1180 UNB1180L
WEATHERFORD/Ellis Williams MP-5 MP-8 MP-10 MP-13 MP-16 E-447 E-2200
W446 W440
Drillmec 7TS-600 8T-800 9T1000 10T-1300 12T1600 14T-2200 10D2C
8D1S
Upetrom 3PN-1000 3PN-1600 3PN-1300 3PN-2000
OPI 350-D 350-GD 500-DC 700-HDL 1000-HDL
Lewco/Ewco W-250-C WH440 W446 W600 WH600 WH770 W1100
WH1312 W1612 W1712 W2000 W2214 W2215
American Block K800 K1000 K1300 K1600 K2200
Loadmaster LSF-500 LSF-800 LSF-1000 LSF-1300 LSF-1600
Soilmec 7T500 7T508 8T650
Dragon 440HP 660HP
GASO/Wheatly 1550 1560 1563 1654 1742 1753 1874
1849 1860 2652
Great American GA-550 GA-750
TFI BH-800 F-500 F-800 F-1000 F-1300 F-1600
TSC WF-400 WF-450 WF-700 WFU-750 WF-1000 WF-1300 WF-1600
WF-2000 WF-2200
