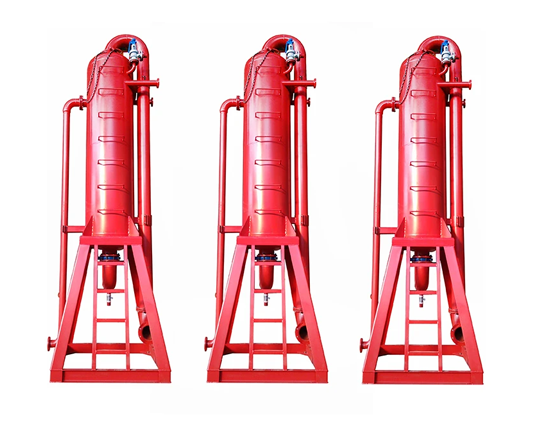

Mud Gas Separator

Mud Gas Separator

  • Baffle plates within vessel creates Maximum removal of free gas.
  • Skid-mounted design enables easy transportation, rig-up and rig-down.
  • Designed, manufactured and tested in accordance with API & ISO standards.

Description

Mud Gas Separator

Mud Gas Separator (Poor Boy Degasser) is engineered specifically for onshore drilling operations. The working principle of the poor boy degasser is simple. The drilling mud with gas mixture in the bore hole is transferred by mud return lines to the inlet of the mud gas separator, allowing it to impinge on a series of baffles which separates gas from drilling mud.

Model DNPZYQ1000A
Tank diameter 1000mm
Capacity 200~280m3/h
Inlet 4 Inch
Output  10 Inch
Vent Line 8 Inch
Weight 2234Kg
Dimension: L×W×H 2265×2000×5681mm
