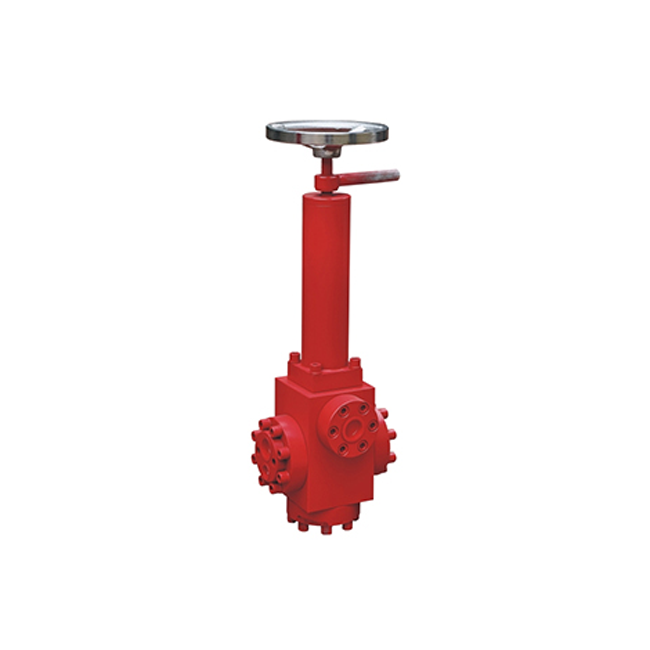

JYS-21.25 manual pressure regulating valve product introduction:
The manual pressure regulating valve JYS21-25 introduces that the function of the manual pressure relief valve in the ground BOP control device is to reduce the high pressure oil (21MPa/3000psi) in the accumulator to the lower pressure (usually 10.5MPa/1500psi) required to control the BOP. In addition, under certain conditions, the valve also has the function of automatic overflow and pressure reduction, so the valve has two functions of pressure reduction and overflow.
Main parameters of JYS-21.25 manual pressure regulating valve:
Parameters of manual pressure regulating valve JYS21-25:
Model Working pressure drift diameter (mm) Pressure regulating range
JYS21-25 21MPa(3000psi) 25 0-14MPa(2000psi)

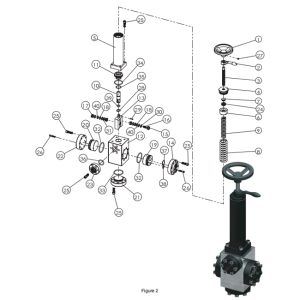

| Manual Regulator(JYS21-25) | ||||
| In repair kit | (Item) | (Part No.) | (Description) | Qty |
| 1 | GB/T5781-2000M10X16 | Screw | 1 | |
| 2 | GB/T 95-2002 10 | -CWasher | 1 | |
| 3 | GB/T 93-1987 10 | Spring Washer | 1 | |
| 4 | SDTYF-00-01 | Handle | 1 | |
| 5 | SDTYF-00-02 | Lock Handle | 1 | |
| 6 | SDTYF-00-20 | Screw | 1 | |
| 7 | SDTYF-00-21 | Sealing Plug | 1 | |
| 8 | SDTYF-00-22 | Bearing Washer | 1 | |
| 9 | GB/T301-1995 8202 | Bearing | 1 | |
| 10 | SDTYF-00-23 | Spring Guide | 1 | |
| 11 | SDTYF-00-03 | Compression Spring,Inner | 1 | |
| 12 | SDTYF-01 -00 | Adjustment Head | 1 | |
| 13 | GB/T 73-1985 M8X12 | Screw | 1 | |
| 14 | SDTYF-00-05 | Compression Spring, Outer | 1 | |
| 15 | SDTYF-00-04 | Spring Plate | 1 | |
| 16 | SDTYF-00-07 | Plunger Guide | 1 | |
| 17 | GB 1235-76 50X3.1 | OO-Ring | 2 | |
| 18 | GB/T 70.1-2000 M8X30 | Screw | 1 | |
| 19 | SDTYF-00-06A | Piston | 1 | |
| 20 | GB 1235-76 25X2.4 | OO-Ring | 9 | |
| 21 | SDTYF-00-08 | Back-Up Ring | 4 | |
| 22 | GB 1235-76 16X2.4 | OO-Ring | 1 | |
| 23 | SDTYF-00-17 | Seal Container | 1 | |
| 24 | SDTYF-00-24 | Wave Spring | 2 | |
| 25 | SDTYF-00-11 | ValveCage | 1 | |
| 26 | GB 1235-76 32X3.1 | OO-Ring | 1 | |
| 27 | SDTYF-00-12 | Seal Ring, Vent | 2 | |
| 28 | SDTYF-00-15 | Spring | 1 | |
| 29 | SDTYF-00-16 | Seal Ring, Supply | 2 | |
| 30 | GB 1235-76 54X3.5 | OO-Ring | 4 | |
| 31 | GB/T 119.1-2000 3X12 | Pin | 4 | |
| 32 | SDTYF-00-26 | Flange,Vent | 1 | |
| 33 | SDTYF-00-25 | Flow Plate,Vent | 2 | |
| 34 | SDTYF-00-09 | Flange, Blind | 1 | |
| 35 | SDTYF-00-18 | Body | 1 | |
| 36 | SDTYF-00-27 | Flange, lnlet(1-NPT) | 1 | |
| 37 | GB/T 70.1-2000 M10X35 | Screw | 28 | |
| 38 | SDTYF-00-19 | Flange, Lower | 1 | |
| 39 | GB 1235-76 40X3.5 | OO-Ring | 1 | |
| 40 | SDTYF-00-10 | Flange, Oulet(TNPT) | 1 | |
| 41 | SDTYF-00-13 | Flow Plate,Supply | 2 | |
| 42 | GB/T 70.1-2000 M5X18 | Screw | 8 | |
| 43 | GB 1235-76 11X1.9 | OO-Ring | 4 | |
| 44 | SDTYF-00-14 | Flange,Blind | 1 | |
