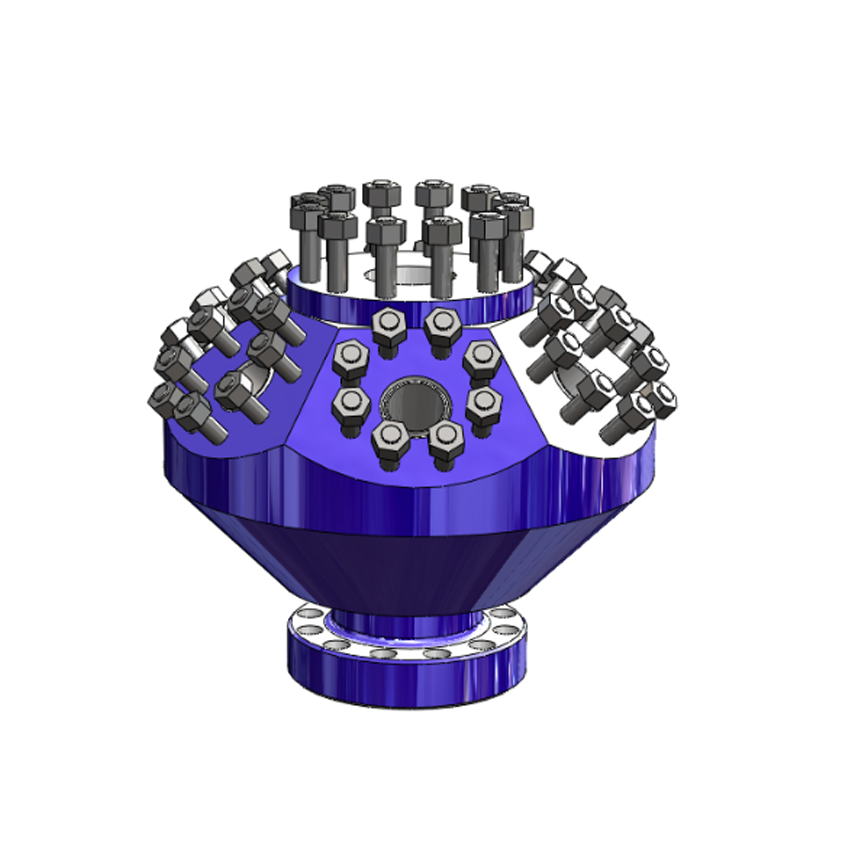

Goat head frac head API 6A fracturing equipment for fracturing work

Description

Goat head frac head API 6A fracturing equipment for fracturing work

Frac head is the equipment often used on frac tree and frac stack during fracturing work, Frac head is often in studded and flange end connections frac head are own various sizes and inlets used to tie multiple frac lines into the frac tree we can also design many type of the frac head as per the requirements.



1. 4 1/6″, 10M x 4 outlets (4 1/16″, 10M) PR-1, PSL-3, L-U

2. 5 1/8″ 10M x 4 outlets (4 1/16″, 10M) PR-1, PSL-3. L-U

3. 7-1/16 5000psi x 3 outlets (4 1/6″, 5M) PR-1, PSL-2; L-U

4. 7-1/16 10M x 4 outlets (4 1/16″, 10M) PR-1, PSL-3; L-U

5. 7-1/16 15M x 4 outlets (4 1/16″, 10M) PR-1, PSL-3; L-U

                                        Product Name
API 6A frac heads
Working Pressure
2,000PSI -20,000PSI
Nominal Bore
1 13/16” – 9”
Working Medium
oil, natural gas, mud, gas with H2S, CO2
Working Temperature
-46° C – 121° C ( Class LU )
Material Class
AA、BB、CC、DD、EE、FF、HH
Specification level
PSL1-4
Performance level
PR1-2
Manufacture standard
                                                                              API 6A
