Frac Tree & Manifold System

Description

Frac Tree & Manifold System

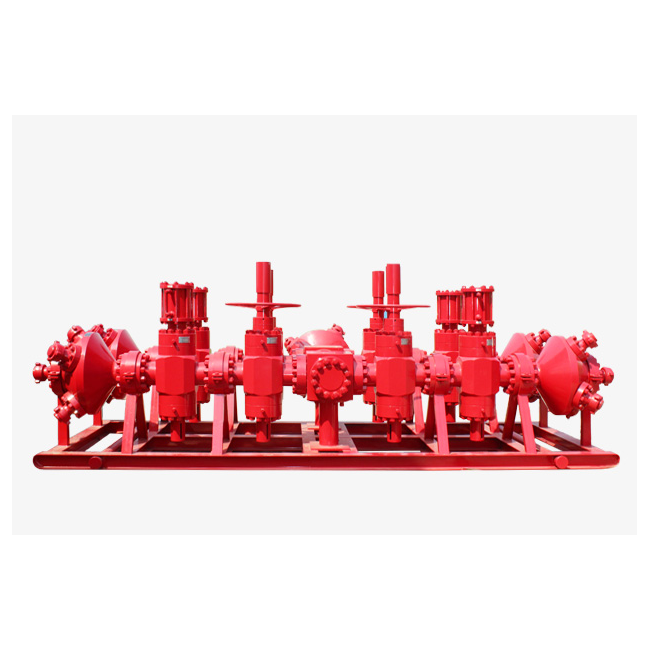

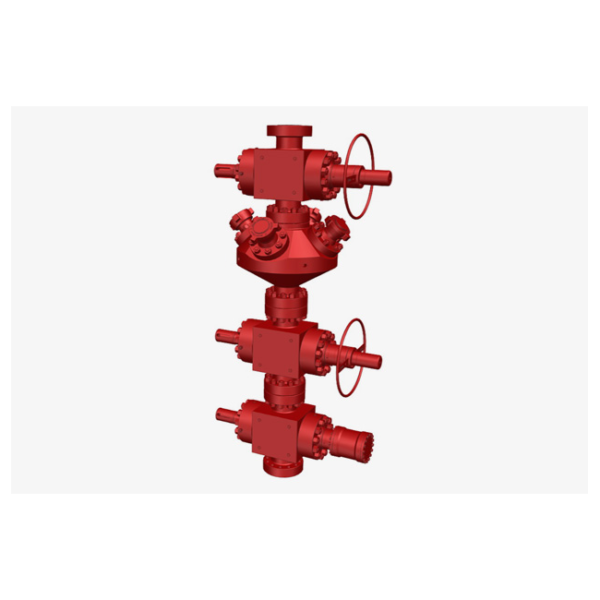

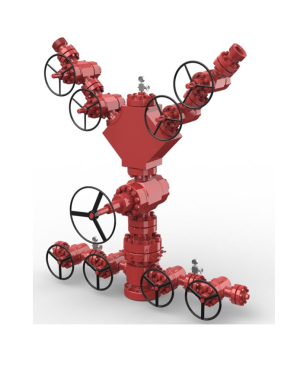

Frac Tree & Manifold System used in fracturing and acidizing applications. Frac Tree& Manifold is suitable for fracturing of various wells. The frac manifold serves to connect the frac trucks to the wellhead. DEENPU supplies various frac tree & manifold system from 4 1/16”~7 1/16”, with working pressure 10,000PSI~ 15,000PSI .

Product Details

Design and manufacture conform to API SPEC 6A /16C.

Modified forged alloy steel is applied for main pressure-containing parts and flanges. Special heat treatment is conducted for better performance in H2S service.

Specifications
Technical Specification
Bore Size 4-1/16″~7-1/16″
Working Pressure 10,000psi~15,000psi
Material Class AA~FF
PSL PSL1~PSL4
PR PR1~PR2
Working Medium Drilling Fluid, Oil, Gas (H2S, CO2),Water
