FC Gate Valve

Gate Valves for Drilling & Production
Manual and Hydraulic
Pressures up to 15,000 PSI for Various Sizes
Meets or Exceeds API 6A Standards & NACE MR-01-75
Internal parts are completely interchangeable with OEM

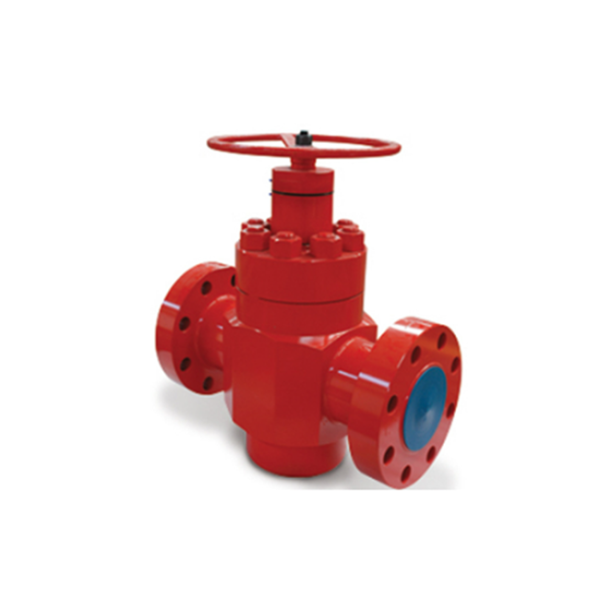

FC Gate Valve


The model ‘FC’ Gate Valve is a field-proven valve which provides reliability and interchangeability.
The ‘FC’ valves has bi-directional sealing and a non-rising stem making it ideally suited for drilling Manifolds, X-mas trees and severe service.
No special tools are needed to change gate and seat assembly.
The Stem pin protects the stem and internal parts from failure by shearing if the handwheel is over-torqued.
One piece gate helps to prevent line sediment from entering the body cavity and prevents pressure locks when the upstream pressure drops.
A wide range of body and trim materials to meet various operating conditions.
Easily equipped with Hydraulic Actuators for Manifold or Subsea service.

Parts List

  1. Hand Wheel
  2. Bearing Cap
  3. Grease Fitting (Bearing Cap)
  4. Ring
  5. Bearing Race
  6. Thrust Bearing
  7. O-Ring (Stem Adapter)
  8. Stem Adapter
  9. Stem Pin
  10. Packing Gland
  11. Stem Packing
  12. Nut
  13. Stud
  14. Bonnet
  15. Check Valve
  16. Grease Fitting
  17. Bonnet Gasket
  18. Gate & Seat Assembly
  19. Stem
  20. Gate
  21. Retainer Plate
  22. Seat Ring
  23. Seal Ring
  24. Pin
  25. Body
  26. Name Plate
  27. Seal Ring
  28. Body Bushing
  29. Guide
