Description

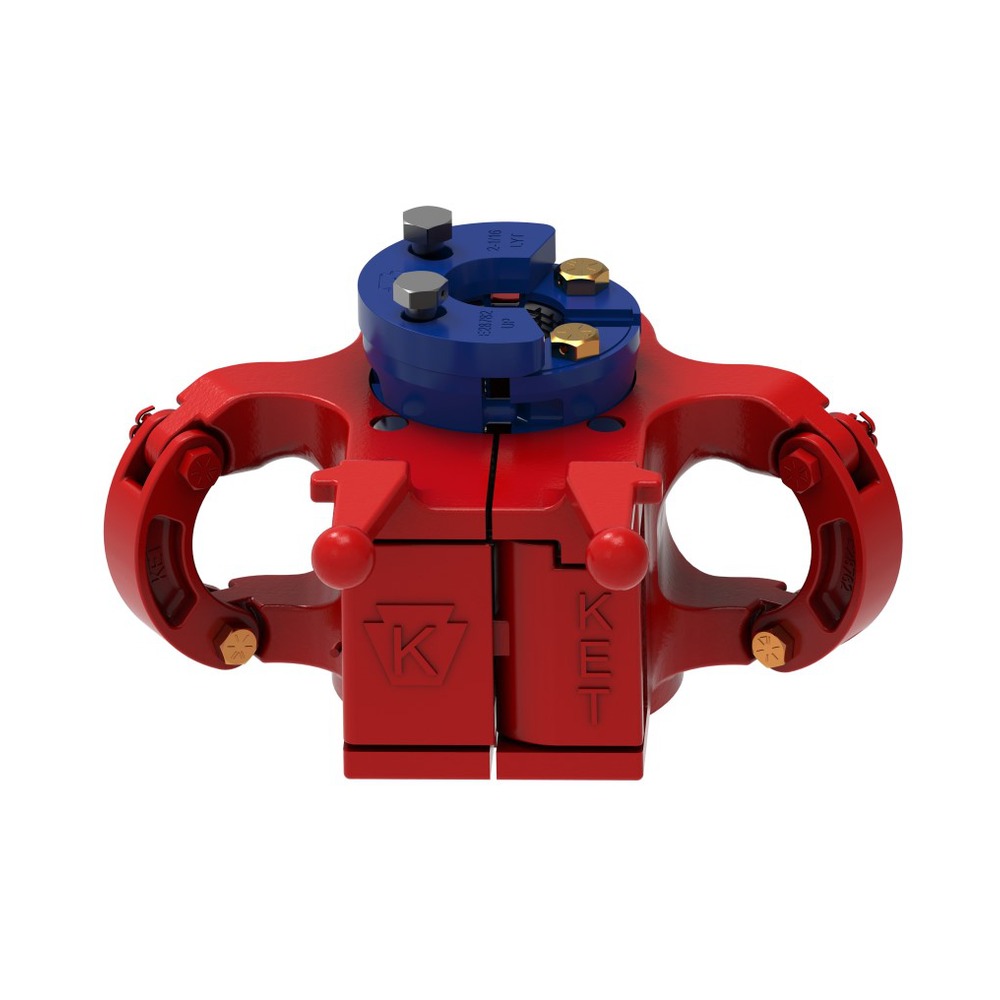

DEENPU supplies slip type elevators fully interchangeable with Keystone Energy Tools (KET) LYT, MYT, YT, HYT, YC and HYC slip type elevators. KET slip type elevators use a multi-segment slip design that wraps around the pipe for uniform gripping without crushing, and are rated from 20 to 200+ tons. All are made of alloy steel, heat-treated for strength and wear resistance, and machined to strict quality standards with an API taper of 4″/ft.
All DEENPU elevators, slip assemblies, setting rings/plates, inserts and bottom guides are dimensionally and functionally interchangeable with genuine KET parts. Part numbers are listed below for cross-reference.
Elevator Series Overview
| Series | Rating | Range | Size of Links | Elevator Part No. |
|---|---|---|---|---|
| KET LYT | 20 Ton | 3/4″ – 2-1/16″ | 1-1/4″ – 2-3/4″ | E28750 |
| KET YT | 75 Ton | 1.315″ – 3-1/2″ | 2-1/4″ – 2-3/4″ | E23105 |
| KET YC | 75 Ton | 3-1/2″ – 7″ | 2-1/4″ – 2-3/4″ | E24140 |
| KET MYT / HYT / HYC | Various | Per size | Per size | On request |
LYT (20 Ton) Slip Assemblies & Setting Plates
| Part No. | Description | Weight (lbs) |
|---|---|---|
| E28745-6 | 2-1/16″ × 2-1/16″ LYT Slip Assembly | 17.00 |
| E28745-5 | 2-7/8″ × 2″ LYT Slip Assembly | 17.00 |
| E28745-4 | 2-7/8″ × 1-1/2″ (1.900″) LYT Slip Assembly | 17.00 |
| E28745-2 | 2-7/8″ × 1″ (1.315″) LYT Slip Assembly | 20.00 |
| E28782 | 2-1/16″ Setting Plate | 2.25 |
| E28783 | 1-1/2″ (1.900″) Setting Plate | 3.00 |
| E28736 | 1″ (1.315″) Setting Plate | 3.15 |
YT (75 Ton) Slip Assemblies, Setting Rings & Inserts
| Part No. | Description | Weight (lbs) |
|---|---|---|
| E23108-5 | 3-1/2″ × 3-1/2″ YT Slip Assembly | 64.00 |
| E23108-3 | 3-1/2″ × 2-7/8″ YT Slip Assembly | 76.00 |
| E23108-4 | 2-7/8″ × 2-7/8″ YT Slip Assembly | 76.00 |
| E23108-8 | 2-7/8″ × 2″ YT Slip Assembly | 82.00 |
| E27813 | 3-1/2″ YT Setting Ring | 3.13 |
| E27695 | 2-7/8″ YT Setting Ring | 3.56 |
| E24774 | 3-1/2″ × 3-1/2″ Insert (24 req.) | 0.50 |
| E24773 | 2-7/8″ × 2-7/8″ Insert (12 req.) | 0.75 |
YC (75 Ton) Slip Assemblies, Setting & Bottom Guide Plates
| Part No. | Description | Weight (lbs) |
|---|---|---|
| E34931 | 4-1/2″ × 3-1/2″ YC Slip Assembly | 150.00 |
| E24072-5 | 4-1/2″ × 4-1/2″ YC Slip Assembly | 150.00 |
| E24072-2 | 5-1/2″ × 5-1/2″ YC Slip Assembly | 150.00 |
| E24077-1 | 7″ × 7″ YC Slip Assembly | 150.00 |
| E34932 | 3-1/2″ Setting Plate | 8.00 |
| E30219 | 4-1/2″ Setting Plate | 7.00 |
| E30229 | 7″ Setting Plate | 5.50 |
| E24071-4 | 4-1/2″ Bottom Guide | 8.50 |
MYT, HYT, HYC and HYC 200 Ton slip type elevator part numbers, plus full slip assembly, insert and guide lists, available on request.
Interchangeable Spare Parts Available
DEENPU supplies interchangeable KET slip type elevator bodies, slip assemblies, slip segments, setting rings, setting plates, bottom guides and inserts for all LYT, MYT, YT, HYT, YC and HYC sizes. Recommended spares: 2 sets of inserts and 2 setting rings per pipe size.
Ordering Information
To order, please specify: elevator series (LYT / MYT / YT / HYT / YC / HYC), pipe size, and items required (elevator, slip assembly, setting ring/plate, bottom guide, or inserts). Provide the KET part number for cross-reference where available.
Contact DEENPU for Orders & Technical Support
Email: SALES@DEENPU-MACHINERY.COM
Phone / WhatsApp: +86 18051728055
ATTN: LINDA HU
Address: Yandu District, Yancheng City, Jiangsu Province, China
Web: www.deenpu-machinery.com
