Description

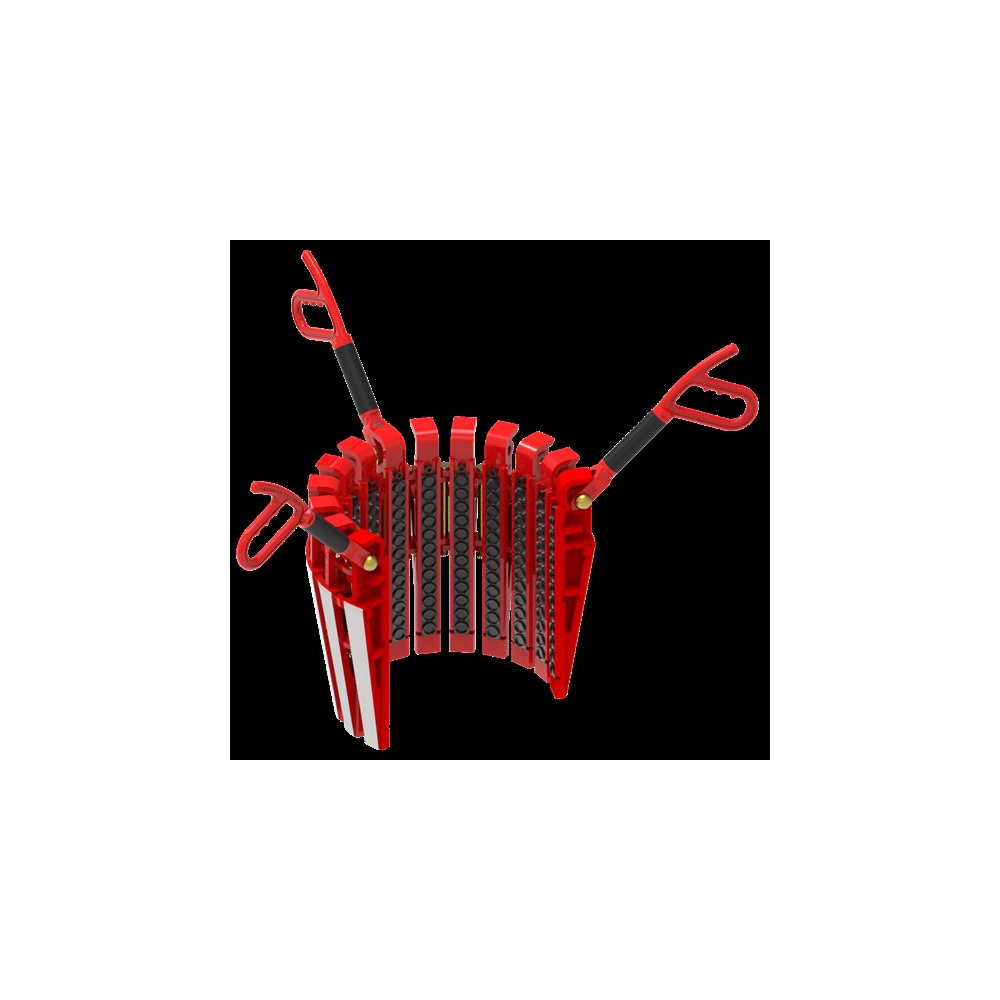

DEENPU supplies casing slips fully interchangeable with Keystone Energy Tools (KET) Type CMSXL and CMS-3 casing slips. KET casing slips have a multi-segment design giving a full wrap-around to prevent casing damage. By adding or subtracting segments and inserts, one slip accommodates a wide range of casing ODs. Segments are alloy steel, heat-treated for strength and wear resistance, machined to strict quality standards.
All DEENPU casing slip segments, buttons, inserts, hinge pins and handles are dimensionally and functionally interchangeable with genuine KET parts. Part numbers are listed below for cross-reference.
Type CMSXL Casing Slips (API Taper 4″/ft, 15 T/segment)
| Part No. | Casing OD | Segments | Rating (Tons) | Handles | Weight (lbs) |
|---|---|---|---|---|---|
| A14-111-F | 6-5/8″ | 12 | 180 | 3 | 205 |
| A14-112-F | 7″ | 12 | 180 | 3 | 206 |
| A14-114-F | 8-5/8″ | 13 | 195 | 3 | 220 |
| A14-115-F | 9-5/8″ | 14 | 210 | 4 | 240 |
| A14-116-F | 10-3/4″ | 15 | 225 | 4 | 256 |
| A14-117-F | 11-3/4″ | 17 | 255 | 4 | 288 |
| A14-118-F | 13-3/8″ | 18 | 270 | 4 | 304 |
| A14-119-F | 16″ | 21 | 315 | 4 | 351 |
| A14-120-F | 18-5/8″ | 25 | 375 | 4 | 417 |
| A14-121-F | 20″ | 25 | 375 | 4 | 416 |
| A14-122-F | 24″ | 30 | 450 | 5 | 500 |
Type CMS-3 Casing Slips (API Taper 3″/ft)
| Part No. | Casing OD | Segments | Handles | Weight (lbs) |
|---|---|---|---|---|
| A14-134-F | 9-5/8″ | 14 | 4 | 214 |
| A14-135-F | 10-3/4″ | 15 | 4 | 224 |
| A14-136-F | 11-3/4″ | 17 | 4 | 255 |
| A14-137-F | 13-3/8″ | 18 | 4 | 268 |
| A14-138-F | 16″ | 21 | 4 | 310 |
| A14-139-F | 18-5/8″ | 25 | 4 | 367 |
| A14-140-F | 20″ | 25 | 4 | 366 |
| A14-141-F | 24″ | 30 | 5 | 440 |
| A14-142-F | 26″ | 32 | 5 | 468 |
| A14-143-F | 30″ | 36 | 5 | 524 |
Interchangeable Spare Parts Available
DEENPU supplies interchangeable KET casing slip segments, buttons, inserts, hinge pins and handles for all CMSXL and CMS-3 casing slips from 6-5/8″ to 30″ OD. CMS replacement parts available.
Ordering Information
To order, please specify: slip type (CMSXL / CMS-3), casing OD, and items required (complete slip or replacement segments/buttons/inserts). Provide the KET part number for cross-reference where available.
