Annular BOP Packing Element

For the packing element, we have few types packing element for shaffer and hydril bops and china brand bops. The material we have is Nitril and Nature two types. We have most of them exstock.

Anybody interesting, just contact us.

Description

Annular BOP Packing Element

What are the Annular bop packing element for ?

These annular BOP packing elements we designed are for longer service and sealing life without compromising the desirable characteristics of the seal, such as open/close functionality.

Our OEM annular blowout preventer (BOP) packing elements are developed from a proprietary compound formulation, as well as optimized tooling and metallic designs to support high pressures, high temperatures and a wide variety of drilling fluids.

How many type Annular bop packing element does we have ?

Availble Annular bop packing element Type

Item Description OEM Part Number
GK-7-3NAT 7-1/16” 3,000 psi GK Packing Element, Natural Rubber 31078/1003252-01
GK-7-3NIT 7-1/16” 3,000 psi GK Packing Element, Nitrile Rubber 31078/1003252-02
GK-7-5NAT 7-1/16” 5,000 psi GK Packing Element, Natural Rubber 30667/1003253-01
GK-7-5NIT 7-1/16” 5,000 psi GK Packing Element, Nitrile Rubber 30667/1003253-02
GK-9-3NAT 9” 3,000 psi GK/ 9” 2,000 psi MSP (8” Nominal Size) Packing Element,
Natural
GK-9-3NIT 9” 3,000 psi GK/ 9” 2,000 psi MSP (8” Nominal Size) Packing Element,
Nitrile
GK-11-3NAT 11” 3,000 psi GK Packing Element, Natural Rubber 31818/1003259-01
GK-11-3NIT 11” 3,000 psi GK Packing Element, Nitrile Rubber 31818/1003259-02
GK-11-5NAT 11” 5,000 psi GK Packing Element, Natural Rubber 31401/1003260-01
GK-11-5NIT 11” 5,000 psi GK Packing Element, Nitrile Rubber 31401/1003260-02
GK-13-3NAT 13-5/8” 3,000 psi GK Packing Element, Natural Rubber 30732/1003262-01
GK-13-3NIT 13-5/8” 3,000 psi GK Packing Element, Nitrile Rubber 30732/1003262-02
GK-13-5NAT 13-5/8” 5,000 psi GK Packing Element, Natural Rubber 38148/1003263-01
GK-13-5NIT 13-5/8” 5,000 psi GK Packing Element, Nitrile Rubber 38148/1003263-02
MSP-21-2NAT 21-1/4” 2,000 psi MSP Packing Element, Natural Rubber 37375/1003273-01
MSP-21-2NIT 21-1/4” 2,000 psi MSP Packing Element, Nitrile Rubber 37375/1003273-02

2) GK AND MSP SEAL KITS

Item Description OEM Part Number
GKS-7-3 7-1/16″ 3,000 psi GK Seal Kit 50683/1002016
GKS-7-5 7-1/16″ 5,000 psi GK Seal Kit 50684/1002028
MSPS-8-2 8″ 2,000 psi MSP Seal Kit 092-50700
GKS-9-3 9″ 3,000 psi GK Seal Kit 31818/1003259-01
GKS-11-3 11″ 3,000 psi GK Seal Kit 50687/1002127
GKS-11-5 11″ 5,000 psi GK Seal Kit 50688/1002150
GKS-13-3 13-5/8″ 3,000 psi GK Seal Kit 50689/1002819
GKS-13-5 13-5/8″ 5,000 psi GK Seal Kit 50690/1002209
MSPS-21-2 21-1/4″ 2,000 psi MSP Seal Kit 50702/1002571

3) Shaffer Type SB and SW type Annular/ Spherical Packing elements

Item Description OEM Part Number
SS-7-3/5NAT 7-1/16″ 3,000-5,000 psi Spherical Packing Element, Natural Rubber 150848
SS-7-3/5NIT 7-1/16″ 3,000-5,000 psi Spherical Packing Element, Nitrile Rubber 150847
SS-11-5NAT 11″ 5,000 psi Spherical Packing Element, Natural Rubber 150809
SS-11-5NIT 11″ 5,000 psi Spherical Packing Element, Nitrile Rubber 150810
SS-13-3/5NAT 13-5/8″ 3,000-5,000 psi Spherical Packing Element, Natural Rubber 150577
SS-13-35NIT 13-5/8” 3,000-5,000 psi Spherical Packing Element, Nitrile Rubber 150576

4)SPHERICAL SEAL KITS

Item Description OEM Part Number
SSK-7-3/5 7-1/16″ 3,000-5,000 psi Spherical Seal Kit #155079
SSK-11-5 11″ 5,000 psi Spherical Seal Kit #155030
SSK-13-3/5 13-5/8″ 3,000-5,000 psi Spherical Seal Kit #155073

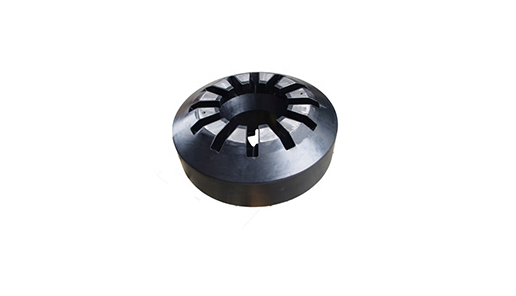

Annular bop packing element Photoes:

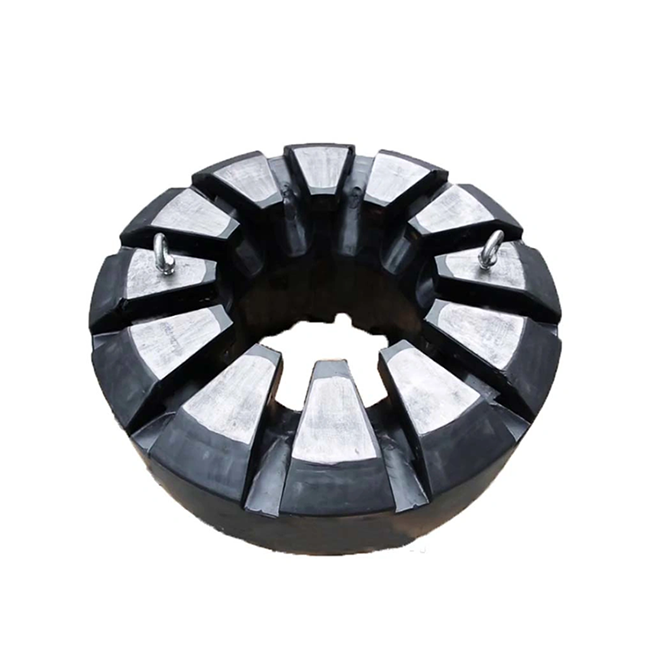

Hydril GK/MSP type Packing Element

Our annular bop packing element packaging:

The mechanical properties shall be as shown in the tables below. Curing of samples will be per ASTM D412. Test coupons will be cut and mechanically tested to verify that the material meets the requirements in the following tables.

Typical Physical Properties Acceptable Ranges
Hardness ( Shore AA durometer) 75a/85a
Tensile Strength 2030psi
Elongation 150%
