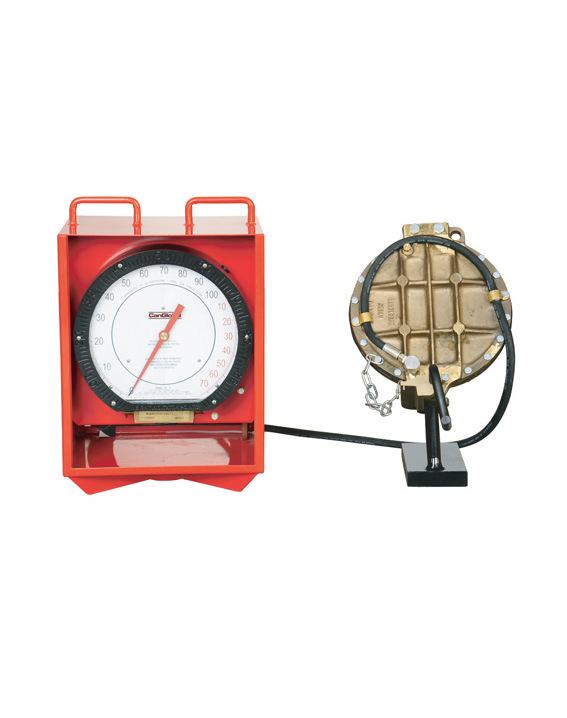

Anchor Type Weight Indicator

Description

Deenpu’s Anchor Type Weight Indicator Systems are made to be accurate and durable. Our systems are compatible with all major dead line anchors. Deenpu’s anchor type weight indicator systems operate using a compression or tension load cell to display accurate, reliable measurements. When the load cell is compressed, hydraulic fluid is forced through the load cell to the weight indicator by way of a high pressure hydraulic hose.

Once the pressure reaches the indicator, the outer dial measures weight on bit, and the inner dial measures total hook load. Each gauge is designed with 2 pointers for more accurate readings, and the Vernier pointer offers 4:1 sensitivity and greater accuracy. Deenpu’s anchor weight indicator help drillers maintain consistent weight on bit and provides a means to drill more efficiently and economically.

Includes:

12” or 16” indicator
Dial set
Hose
Loadcell
Box or panel mounts available
Metric equivalents in Kgs and DaN
