7 1/16“ 5K API 6A Gate Valve Body

API 6A Gate valve body provided by DEENPU made by forged alloy steel (AISI 4130, AISI 410SS), we designed and manufacture the gate valve body in accordance with API 6A latest edition.
We provide the valve body with or without finish machining, we have our own forging falicity. we can forge the body based on clients’ requirment, with the special gate valve body shape.


7 1/16“ 5K API 6A Gate Valve Body

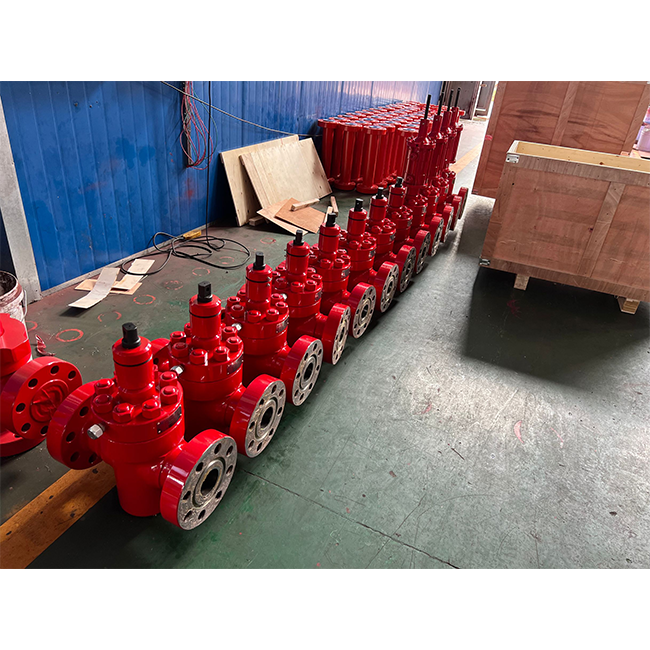

Gate Valve ‘FLS’ type is widely recognized as a high-quality valve for severe applications. It is a fullbore, through-conduit valve available in pressure ratings from 2,000 to 20,000 psi and bore sizes from 1 13/16 to 11 in. The FLS is our standard valve for critical requirements, including extreme sour and subsea applications, Easily equipped with Hydraulic Actuators for Manifold or Subsea service.

FLS Gate Valves’ feature:

  • 1. Forged or Cast Body & Bonnet, A wide range of body and trim materials to meet various operating conditions.
  • 2. Metal-to-Metal seal, gate to seat, seat to body, bonnet seal and stem backseat.
  • 3. Bi-directional Sealing,
  • 4. All internal parts can be inline changed,No special tools are needed to change gate and seat assembly.
  • 5. Heavy duty thrust bearing is used to absorb stem thrust and reduce operating torque.
  • 6. The Stem pin protects the stem and internal parts from failure by shearing if the handwheel is over-torqued
Bore Size 3 1/16″
Working Pressure 10,000psi
Material Class AA – HH
Working Temperature 75°F – 350°F
PSL 1 – 4
PR 1 – 2
