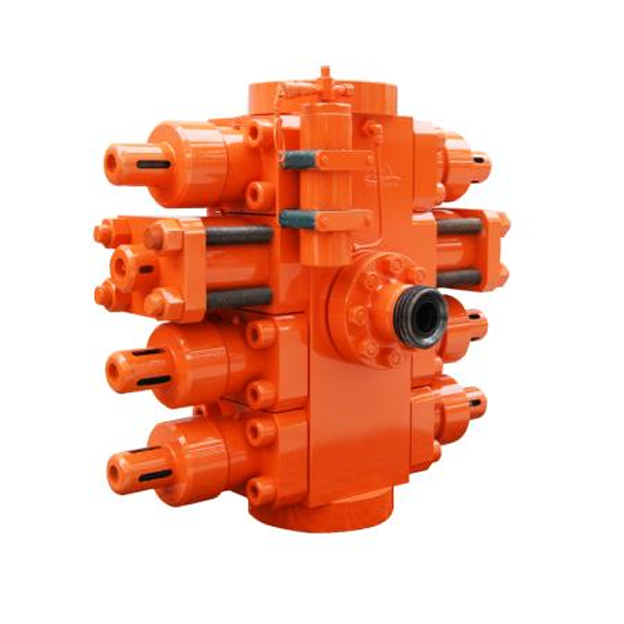

3 1/16″-10000PSI Quad Blowout Preventer

Description

3 1/16″-10K BOP is designed for protection against blowouts for coiled tubing operations, The BOP can rapidly shut off the well during overflow, well kick and blowout for well killing operation by regaining pressure control.
Hydraulically driven and manual lock capability ensures quick response and safe operation.

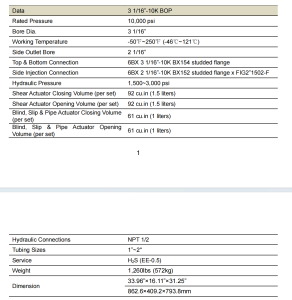

Technical Data:

Recommended hydraulic oil:
General areas: Mobil DTE10 excel 32# (Applicable minimum ambient temperature is
-40 with heater and ℃ -20 ℃ without heater.)
Tropical areas: Mobil DTE25# (Applicable minimum ambient temperature is -40 ℃
with heater and -20 without heater.) ℃
If the working temperature is lower than the rated temperature, please contact us.
Certification
 Testing– All BOPs are hydrostatic and function tested as per API 16A.
 H2S Service – Materials in contact with pressured well fluids conform to NACE
Specification MR-01-75 for H2S Service.
 Arctic Service –All essential parts are conducted Charpy impact test at -75℉ as per
API 16A.
Operation& Maintenance
1.1 Assembly
Correct assembly is very important for proper operation of equipment. The top and
bottom flange stud must be tightened. Please use studs and nuts of specified grade
for H2S service as per API 6A. Use new washers that meets API 6A and tighten with
proper torque.
1.2 Hydraulic Connection
Connect the hydraulic piping that drives actuators to the hydraulic coupler in the front
of the BOP to make sure the hydraulic piping of each actuator match indicators on the
control panel. Marking each hydraulic piping or using different kinds of couplers is
recommended.
