Description

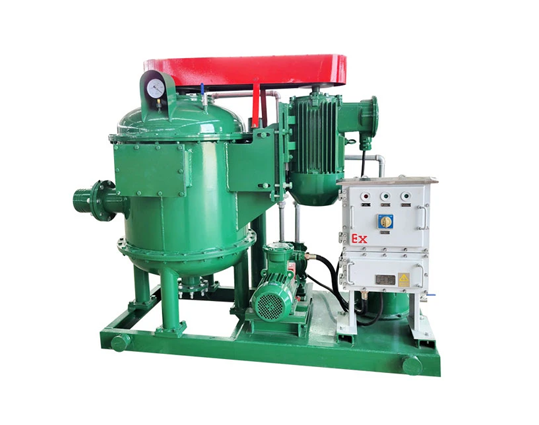

Vacuum Degasser is a special degassing equipment for processing gas-immersed drilling fluids. The degassing efficiency is as high as 95%. It is suitable for supporting various oil drilling solids control systems, also useful for restoring the specific gravity of the mud and stabilizing the viscosity of the mud. Performance and reducing drilling costs play an important role. At the same time, it can also be used as a high-power agitator.
Vacuum Degasser Features & Benefits:
1. Vacuum Degasser Structure: Compressed structure and degassing efficiency of more than 92%.
2. Vacuum Degasser Motor: Explosion-proof Motor.
3. Electrical control system: Explosion proof electrical system.
4. Electrical components: ABB, Siemens, Schneider.
Parameters of Vacuum Degasser:
| Model | ZCQ240 | ZCQ270 | ZCQ300 | ZCQ360 |
| capacity（m³/h） | 240 | 270 | 300 | 360 |
| Vacuum ratio（MPa） | -0.030—0.04 | -0.030—0.050 | -0.030—0.055 | -0.040—0.065 |
| Vacuum pump power（KW） | 2.2 | 3 | 4 | 7.5 |
| Speed（r/min） | 860 | 870 | 876 | 880 |
| Applicable mud gravity（g/cm³） | ≤2g/cm³ | ≤2g/cm³ | ≤2.5g/cm³ | ≤2.5g/cm³ |
| Master motor power（KW） | 15 | 22 | 30 | 37 |
| Dimension | 1750×860×1500mm | 2000×1000×1760mm | 2250×1330×1650mm | 2400×1500×1850mm |
| Weight | 1100kg | 1350kg | 1650kg | 1800kg |
Our company has been in the oil & gas drilling equipment industry for over more years, We are here to serve all your drilling equipment needs.
