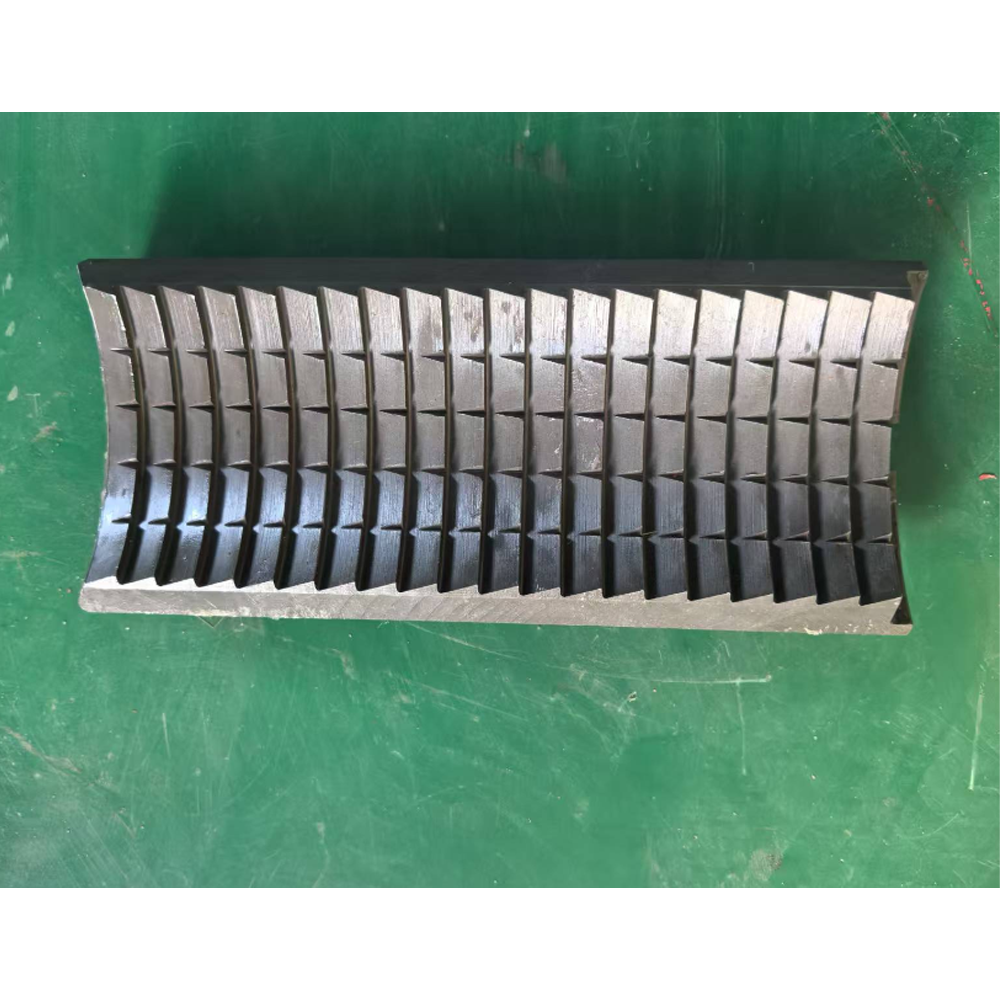

Tong Dies Slip Inserts

  1. Home
  2. Handling Tools
  3. Drill Pipe Slip
  4. Tong Dies Slip Inserts

Category:

Description

DEENPU is specializing in the production of tong dies and inserts, and dedicated to be an expert in this field with our own specialization and valuable experience. DEENPU dies and inserts are accurately machined to exacting tolerances using state of the art CNC machinery. All dies and inserts are then heat treated to specific standards to provide the best resistance to wear even in the harshest environments. Consistent quality, proper fit and longer service life are basic and permanent pursuit.
DEENPU manufactures and supply dies, inserts, and spare parts for a wide variety of drilling rig handling tools, including:
Rotary slips
Drill collar slips
Casing slips
Safety clamps
Slip-type elevators
Manual tongs
Power tongs
Tubing spiders
INSERTS FOR BJ SLIP TYPE ELEVATORS “LYT” “MYT” “YT” “HYT” “YC””HYC””MYC”
Slip Type Elevator Model Description OEM Ref# #/Set
LYT(1.05”- 2 1/16”/ 20 TON) 2 1/16” x 2 1/16” 28772 8
MYT( 1.315”- 2 7/8”/ 40 TON) 2 7/8” X 2 7/8” 24773 8
2 7/8” X 2 3/8” 29255 8
2 7/8” X 2 1/16” 29256 8
2 7/8” X 2” 29357 8
2 7/8” X 1 1/2”(1.9”) 29257 8
2 7/8” X 1 1/4”(1.66”) 29258 8
2 7/8” X 1”(1.315”) 29259 8
YT( 1.315”- 3 1/2”/ 75 TON) 2 7/8” X 2 7/8” 24773 12
2 7/8” X 2 3/8” 29255 12
2 7/8” X 2 1/16” 29256 12
2 7/8” X 2” 29357 12
2 7/8” X 1 1/2”(1.9”) 29257 12
2 7/8” X 1 1/4”(1.66”) 29258 12
2 7/8” X 1”(1.315”) 29259 12
3 1/2” X 3 1/2” 24774 24
3 1/2” X 2 7/8” 30358 24
HYT(2 3/8”- 3 1/2”/150 TON) 2 7/8” X 2 7/8” 24773 16
2 7/8” X 2 3/8” 29255 16
2 7/8” X 2 1/16” 29256 16
3 1/2” X 3 1/2” 24774 32

3 1/2” X 2 7/8”
30358
32
YC(3 1/2”-7”/75 TON) 3 1/2” X 3 1/2” 16441 16
4” X 4” 16442 16
4 1/2” X 4 1/2” BJ16408 16
4 1/2” X 4” 24781 16
4 1/2” X 3 1/2” 24779 16
5 1/2” X 5 1/2” BJ16407 16
5 1/2” X 5” 24783 16
7” x7” BJ16407 24
7” x 6 5/8” 24748 24
MYC(3 ½”- 7 ¾”/ 200TONS) 4 1/2” X 3 1/2” 24779 16
4 1/2” X 4” 24781 16
4 1/2” X 4 1/2” BJ16408 16
5 1/2” X 5” 24783 16
5 1/2” X 5 1/2” BJ16407 16
7” X 6 5/8” 24748 24
7” X 7” BJ16407 24
HYC(2 7/8”- 7 ¾”/ 200TONS) 3 1/2” X 3 1/2” 16441 24
3 1/2” X 2 7/8” 201356 24
4 1/2” X 3 1/2” 24799 24
4 1/2” X 4” 24781 24
4 1/2” X 4 1/2” BJ16408 24
5 1/2” X 4 1/2” 24785 36
5 1/2” X 5” 24783 36
5 1/2” X 5 1/2” BJ16407 36
7” X 5 ¾” 29254 48
7”X6” 24785 48
7” X 6 5/8” 24748 48
7”x7” BJ16407 48
7 5/8”x 6 5/8” 25474-1 48
7 5/8”x 7” 26750-1 48
7 5/8”x7 ¼” 39287-1 48
7 5/8” x 7 5/8” 70010 48
7 ¾” x 7 ¾” 32477-1 48

Quality Warranty
All our die and inserts are forged and machined, to provide the accuracy required for today's critical applications. The high grade material selected and professional heat treating process provides a suitable hardness, to ameliorate the performance of wear-resisting and corrosion-resisting to a maximum service life. Phosphating or blasting will be done for the surface treatment. Various tooth patterns are available for specific applications. Custom is available.

Interchangeability Warranty
100% interchangeable with OEM design, including BJ, Varco, Web Wilson, B+V, Woolley, Eckel, Farr, Weatherford, BAASH-ROSS Cavins, TD, Rushi, but more cost-effective!
