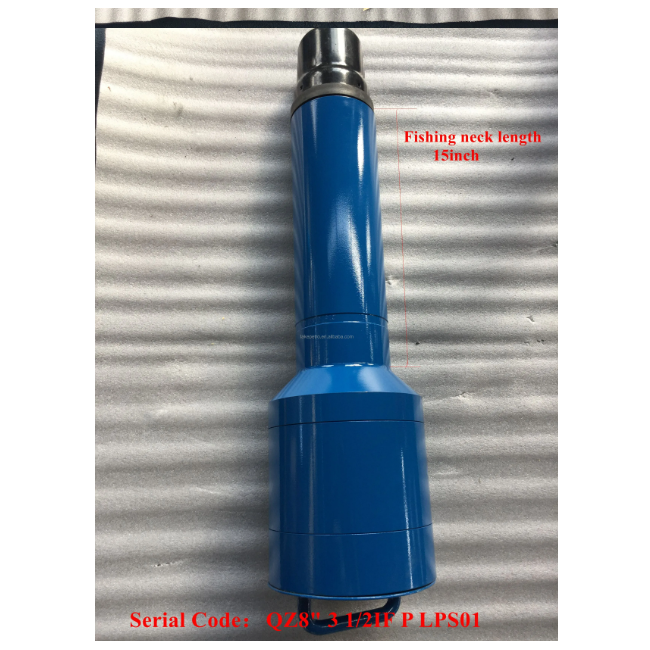

Standard Fishing Magnet
Reverse circulation junk magnet in petroleum and geology exploration is used for fishing of small fallen objects in the downhole. With some of advantages such as simple structure easy to operate, reliable performance, small size and weight, it is equipped with permanent magnet to attract small objects such as teeth wheel, palm, tong teeth and tool so that small objects in downhole are fished and the well bottom is cleaned up.
- Simple structure.
- Easy to operate.
- Reliable performance.
- Small size and weight.
| Model | O.D. (mm) | Thread Conn. | Attracted Weight (kg/cm2) |
Temperature In well | Hole Size (mm) |
|---|---|---|---|---|---|
| CLF89 | 89 | NC26 | 9.8 | 210 | 95~110 |
| CLF100 | 100 | NC26 | 9.8 | 210 | 110~135 |
| CLF125 | 125 | NC38 | 9.8 | 210 | 135~165 |
| CLF140 | 140 | NC38 | 8.5 | 210 | 150~175 |
| CLF146 | 146 | NC38 | 8.5 | 210 | 160~185 |
| CLF150 | 150 | NC38 | 8.5 | 210 | 160~185 |
| CLF175 | 175 | NC50 | 7.9 | 210 | 185~210 |
| CLF178 | 178 | NC50 | 7.8 | 210 | 185~210 |
| CLF190 | 190 | NC50 | 7.8 | 210 | 200~225 |
| CLF200 | 200 | NC50 | 7.6 | 210 | 210~235 |
| CLF203 | 203 | NC50 | 7.6 | 210 | 215~240 |
| CLF225 | 225 | 6 5/8 REG | 7.5 | 210 | 235~270 |
| CLF254 | 254 | 6 5/8 REG | 7.0 | 210 | 265~311 |
| CLF265 | 265 | 6 5/8 REG | 6.9 | 210 | 275~330 |
| CLF292 | 292 | 6 5/8 REG | 6.9 | 210 | 300~442 |
| CLF317 | 317 | 7 5/8 REG | 6.9 | 210 | 340~375 |
| CLF356 | 356 | 7 5/8 REG | 6.9 | 210 | 444.5 |
Our company has been in the oil & gas drilling equipment industry for over more years, We are here to serve all your drilling equipment needs.
