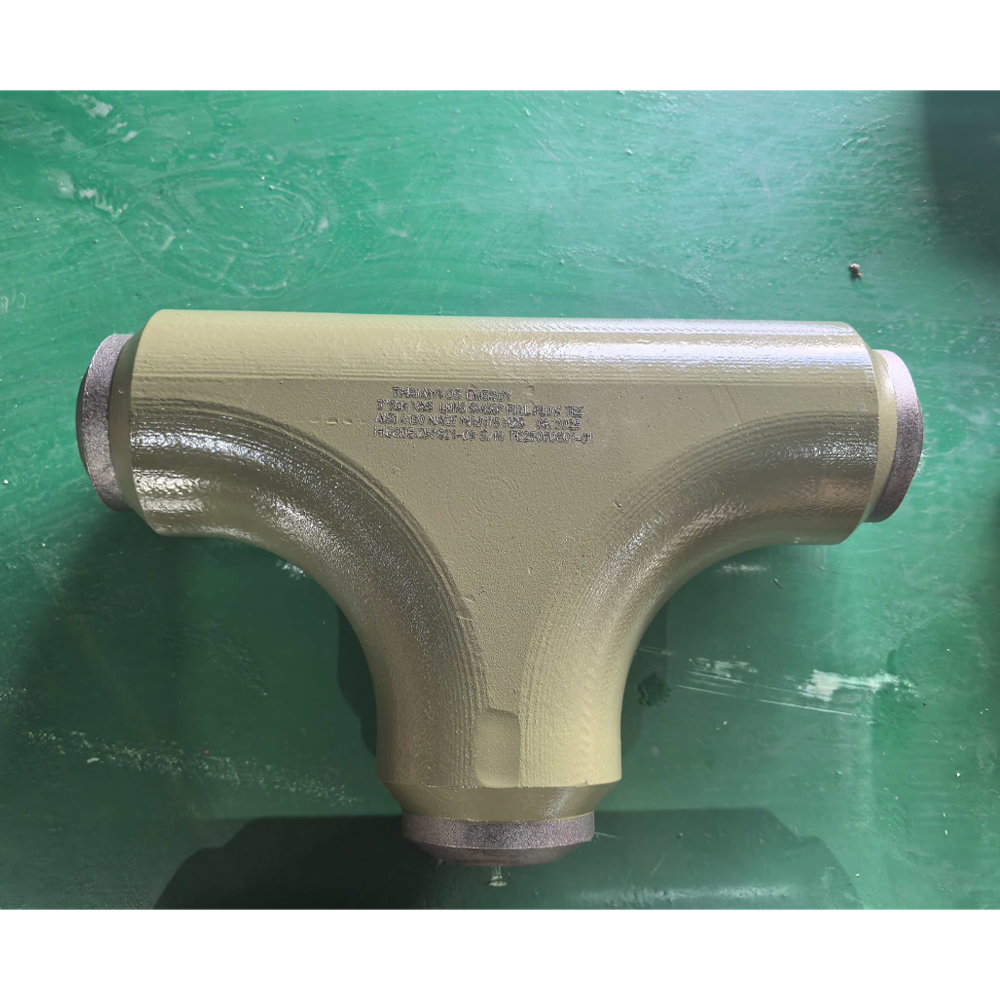

3″ SCH XXS LONG SWEEP FULL FLOW TEE 10K PSI MAT AISI 4130 YS 75K PSI

  1. Home
  2. Flowline Products
  3. integral-fittings
  4. 3″ SCH XXS LONG SWEEP FULL FLOW TEE 10K PSI MAT AISI 4130 YS 75K PSI

Deenpu offer a full range of long sweep tees from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi.

Category: Tags: ,

Description

Deenpu provides ten different styles of manifold fittings in 2″, 3″, 4″, 5″ and even 6″ with working pressures ranging from 3,000 psi to 7,500 psi with test pressures up to 11,250 psi. Each fitting can be supplied with either Schedule XXS or 160 buttweld end connections. Special connections are available upon request.
All fittings are hydrostatically tested prior to shipment and full certification is provided on delivery.
  • Service Class: Standard or Sour Service
  • Material: AISI 4130
  • Weld Ends: ANSI B16.25
  • BW Tolerance: ANSI B16.9
  • Material Yield Strength: 85,000 PSI minimum
  • Material Tensile Strength: 105,000 PSI minimum
  • Operating temperature: -46 to + 180°C (API temperature class L to X)
Size D A B R Weight (kgs)
2″ NB SCH XXS 60.3 406 203 150 36
3″ NB SCH XXS 88.9 406 203 150 33
4″ NB SCH XXS 114.3 560 280 210 64
5″ NB SCH XXS 141.3 610 305 240 90
6″ NB SCH XXS 168.3 762 381 305 143
5.5″ OD 139.7 610 305 240 95
6.75″ OD 171.45 762 381 305 150
