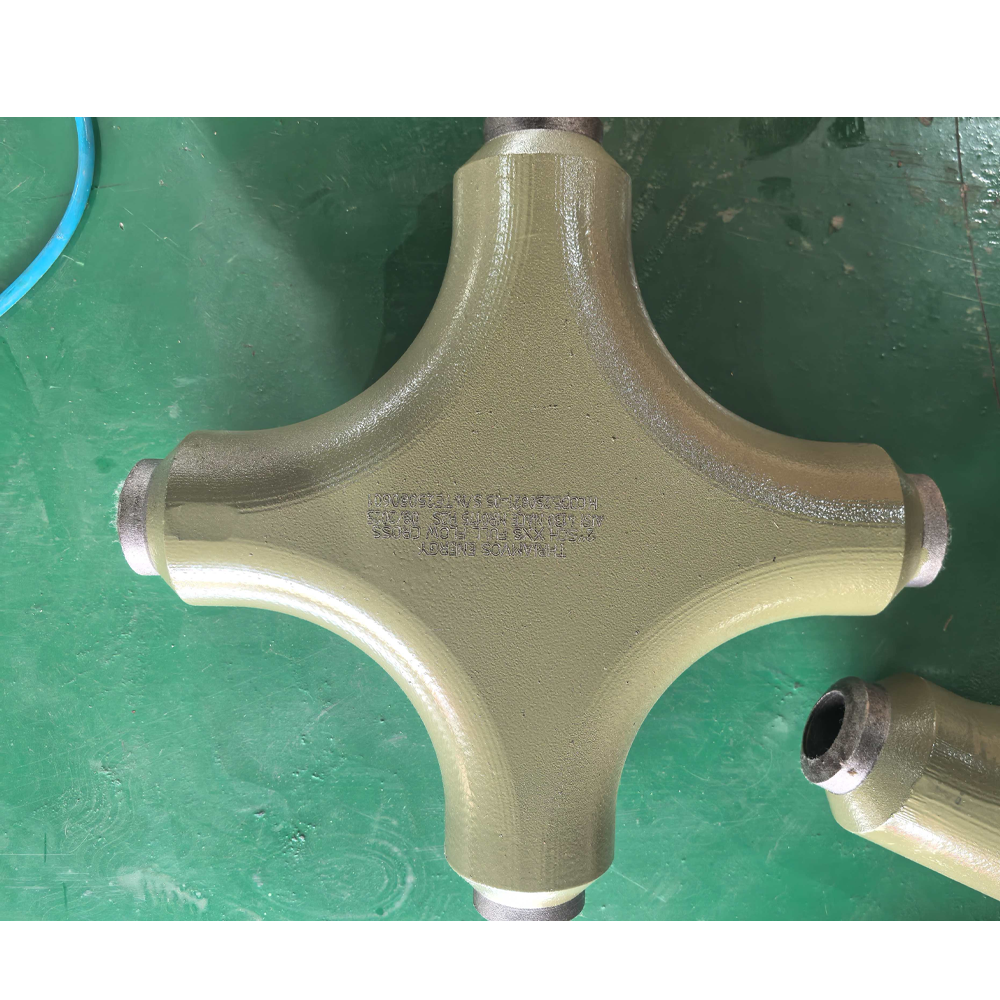

2″ SCH XXS FULL FLOW CROSS

  1. Home
  2. Flowline Products
  3. integral-fittings
  4. 2″ SCH XXS FULL FLOW CROSS

Category: Tags: ,

Description

Deenpu offer a full range of long sweep crosses from 2″ to 7″, available with standard pressure ratings of 5,000 psi, 10,000 psi, 15,000psi and 20,000psi. Deenpu standard specification for our 4130 long sweep crosses is as follows:
Service Class: Standard or Sour Service
Material: AISI 4130
Weld Ends: ANSI B16.25
BW Tolerance: ANSI B16.9
Material Yield Strength: 85,000 PSI minimum
Material Tensile Strength: 105,000 PSI minimum
Operating temperature: -46 to + 180°C (API temperature class L to X)
Size D A B R Weight (kgs)
2″ NB SCH XXS 60.3 406 203 150 32
3″ NB SCH XXS 88.9 406 203 150 48
4″ NB SCH XXS 114.3 560 280 210 94
5″ NB SCH XXS 141.3 610 305 240 138
6″ NB SCH XXS 168.3 762 381 305 208
5.5″ OD 139.7 610 305 240 148
6.75″ OD 171.45 762 381 305 218
