Rotary Slips

Varco design SDS, SDML, and SDXL Rotary Slips are for use in API standard insert bowls. Featuring better contact and distribution of load on drill pipe thru a superior wraparound configuration and unique insert design, these slips prevent bottlenecking and gouging damage. The buttress design of the body segments provides great strength while minimizing weight for ease of handling.

Category: Tag:

Description

Drill Pipe Slips

Varco design SDS, SDML, and SDXL Rotary Slips are for use in API standard insert bowls. Featuring better contact and distribution of load on drill pipe thru a superior wraparound configuration and unique insert design, these slips prevent bottlenecking and gouging damage. The buttress design of the body segments provides great strength while minimizing weight for ease of handling.

SDS-Short Rotary Slips

Slip Body size (inch) 3 1/2″ 4 1/2
API pipe size (OD inch) 2 3/8 2 7/8 3 1/2 3 1/2 4 4 1/2
Parts No. slips c/w inserts 3901 3903 3905 3907 3909 3911
Weight. Slips c/w inserts lb (kg) 117 (53) 111 (50) 107 (48.5) 143 (65) 136 (62) 127 (58)
Qty of inserts 24 24 24 36 36 36
Weight of inserts lb (kg) 21 (9.5) 16 (7) 10 (4.5) 32 (14.5) 25 (11) 16 (7)

SDML-Medium Rotary Slips

Slips Body Size (inch) 3 1/2” 4 1/2” 5” 5 1/2”
API pipe size (OD inch) 2 3/8 2 7/8 3 1/2 3 1/2 4 4 1/2 4 4 1/2 5 4 1/2 5 5 1/2
P/N Slips c/w inserts 15524 15523 15522 15563 15564 15565 15567 15568 15569 15571 15572 15573
Weight slips c/w inserts lb (kg) 193 (87.5) 188 (85) 180 (81.5) 207 (94) 199 (90) 188 (81.5) 204 (92.5) 196 (89) 185 (84) 200 (91) 185 (84) 181 (82)
Qty of inserts 30 30 30 45 45 45 45 45 45 45 45 45
Weight of inserts lb (kg) 26 (12) 22 (9.5) 13 (6) 39 (17.5) 31 (14) 20 (9) 39 (17.5) 31 (14) 20 (9) 39 (17.5) 31 (14) 20 (9)

SDXL-Extra Long Rotary Slips SDXL & SDL Inserts

Slips Body Size (inch) 4 1/2” 5” 5 1/2”
API Pipe OD (Inch) 3 1/2 4 4 1/2 4 4 1/2 5 4 1/2 5 5 1/2
P/N slips c/winserts 15515 15514 15513 15518 15517 15516 15521 15520 15519
Weight slips c/w inserts lb (kg) 229 (104) 219 (99) 205(93) 237(105) 227(103) 213(96.5) 234(106) 224(101.5) 210(95)
Qty of inserts 54 54 54 54 54 54 54 54 54
weight of inserts lb (kg) 47(21) 37(17) 23(10.5) 47(21) 37(17) 23(10.5) 47(21) 37(17) 23(10.5)

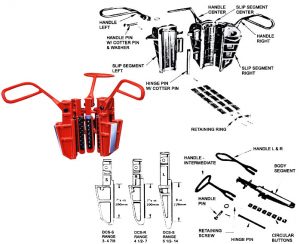

DCS Drill Collar Slips

Each segment of Varco design Drill Collar slips is a rugged drop forging, with an extra long back to provde maximum support to the circular button gripping elements. Full wrap-around design and circular buttons assure positive holding and slip setting. Drill Collar slips are flat on top to accommodate the MP Clamp.
