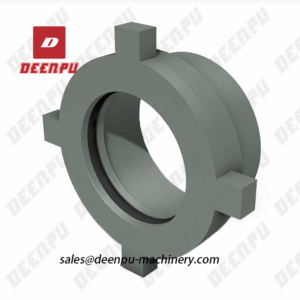

HAMMER SEAL UNIONS

Description

Abco Style Mud Tanks Unions Hammer Seal Union





Abco Style Mud Tanks Unions Hammer Seal Union

Hammer Seal Union



Basic Info:

Certification ISO 9001:2000 Power Source Manual
Operation Pressure 150psi Material Cast Steel
Type Mud Tank Trademark BETTER
Transport Package Plywood Case Specification 4-20 INCH
Origin China HS Code 84314310







Product Description
Mud Tanks Unions Hammer seal union
DEENPU manufactures and supplies unions for mud tanks, Hammerseal Unions, mud tank connecting lines and pump suction flanges. These are manufactured for a maximum line pressure of 150 PSI. The nitrile seal provides compressive seal, the cross-section of the seal designed to provide greater sealing surface. The union is designed to take a maximum of 7° misalignment on the pipe. Sizes which are catered for are 6″, 8″, 10″ and 12″, 6″, 8″ and 10″ sizes can be socket welded to pipe or butt welded to tubing. 12″ size requires butt weld. BETTER Mud Tank Union is an updated design based on Air Grip Unions. These tank unions can accept pipe misalignment to finish an excellent connecting and sealing, and installation and uninstall rapidly, which has been widely used in mud tanks, mud tank connecting lines, and pump suction flanges.
Both of BETTER Air Union and Tank Union styles are interchangeable with other major brands, Bulldog, C&C Industries, Kemper, ABCO.
.
Features
Elongated cross-section of seal ring ensures greater sealing surface when in contact with the pipe makes up with hammer
Molded nitrile seal provides a compression seal
Tank union accepts up to 7 degree pipe misalignment
Available in 6, 8, 10, and 12 inch sizes
6″, 8″, 10″ unions may be socket welded or butt welded to piping.12″ unions require butt-weld only
Large diameter, medium-low voltage and frequently dismantling, rapid installation.
WCB, Buna O-ring, BW SCH 80 End Connections as general

Technical parameter:
1. Medium available: mud, oil, water
2. Medium temperature: 0 ~90 C degree
3. Ambient temperature:-30 ~50 C degree
4. Medium pressure: 0.6Mpa

Please don’t hesitate to contact our sales if you are interested in any of our products.
