Chemical Pump

Description

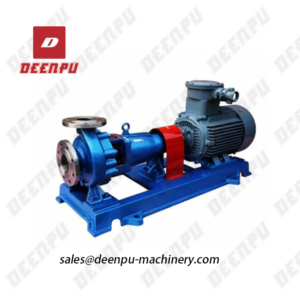

Chemical pump

Our chemical pump is a single-stage, horizontal, radial split type. Usually, they are driven by the motors, so it is called electric chemical pump. The body is supported by feet and adopts a single suction radial impeller, axial suction, and radial discharge. These pumps are equipped with cooling, flushing, or sealing fluid systems. Depending on the application, the front and rear mouth rings and balanced axial force are used. The shaft seals can be customized, and single or double end mechanical seals and packing seals can be employed.

Detailed Images
8
MODEL
Q
PUMP HEAD
SPEED
POWE
NPSH
DN
m³/h
m
r/min
kw
m
mm
CZ32-160
20
36
2900
4
3.1
50*32
CZ40-200
30
50
2900
11
2.4
65*40
CZ50-200
65
56
2900
18.5
4.0
80*50
CZ65-200
100
54
2900
22
4.2
125*80
CZ80-200
150
50
2900
37
3.8
125*80
CZ100-200
220
45
2900
45
4.0
125*100
CZ125-250
200
20
1450
45
2.0
125*100
CZ150-250
320
17
1450
22
3.5
200-150
CZ200-250
600
12
1450
30
3.5
250*200
CZ250-400
1000
44
1450
160
6.0
300*250
