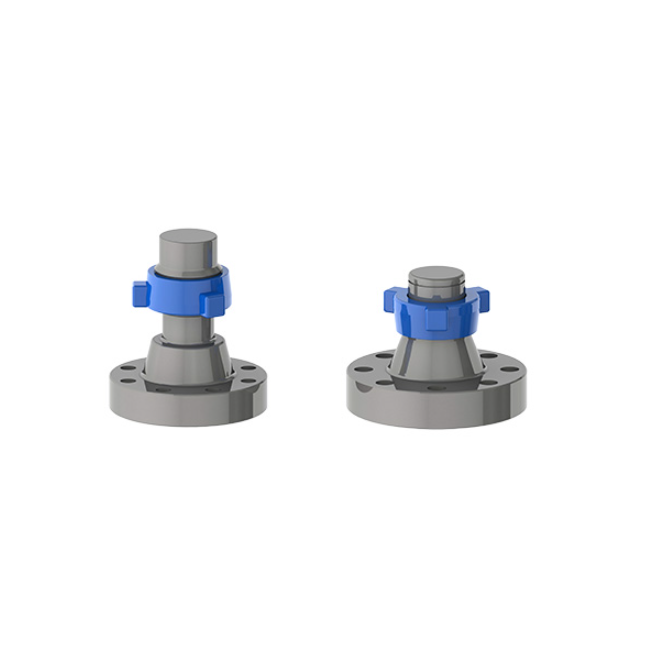

Crossover Adapters

Crossover Adapters are available in various configurations which can include API flanges, quick unions and thread connections.

1.Crossover flanges in various sizes and pressure ratings (2000 PSI to 15000 PSI).
2.Crossover flanges have end connection that differs from one to another in nominal size and pressure rating. Crossover flanges are designed to avoid the bolt fit up fouling.
3.Basic material of construction is alloy steel. However, stainless steel or other exotic material can be supplied. For corrosion resistance, overlays like SS 316L can be incorporated to improve product life if required.

Techanical Specification

Flange Size: 1-13/16″, 2-1/16″, 2-9/16″, 3-1/16″, 3-1/8″, 4-1/16″, 5-1/8″ or Customized

Weco Size: 1″, 2″, 3″, 4″

Weco Connection: Fig 1502, Fig 602, Fig 1002

Working Pressure: 2000PSI, 3000PSI, 5000PSI, 10000PSI, 15000PSI

Material: AISI 4130(integral forged) H2S NACE MR 0175, SUS304, SUS316 or as per customers’ requirements

Temp Class: L-U

Material Class: BB, CC, DD, EE, FF

Product Specification Level: PSL1, PSL2, PSL3, PSL4

Performance Requirement: PR1, PR2

Standards: API 6A, NACE MR0175, ISO 9001, ISO14001
